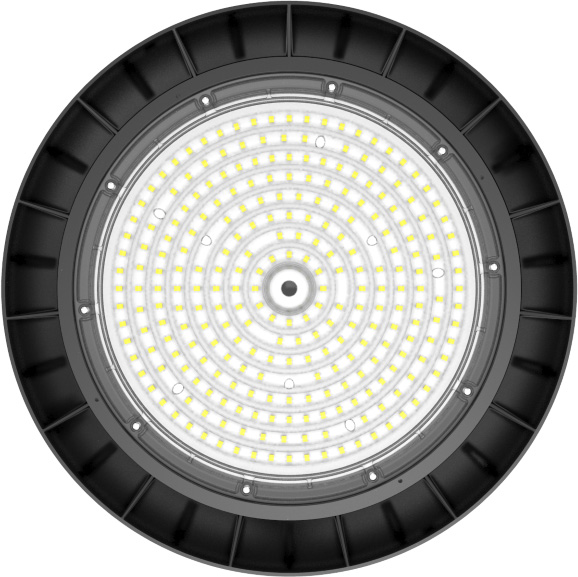

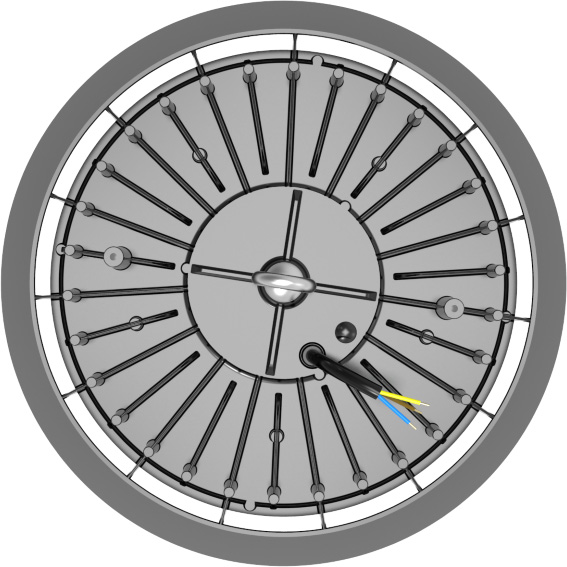

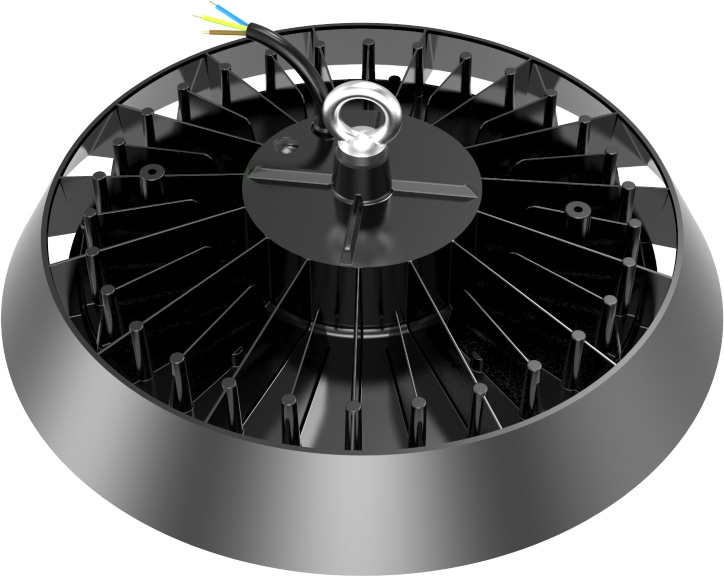

Venus Series LED High Bay Light 60W-200W

Compact ultra-thin design, build-in driver design offers advantages in quality and price.
  • Wattage60W-200W
  • Input Voltage220V-240V
  • Lumen Efficacy140lm/W;160lm/W
  • MaterialADC12 aluminum; PC lens
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A
  • InstallationLoop Hanging;Bracket Mounting
  • Color Temperature3000K/4000K/5000K/5700K/6500K
  • C.R.I70;80
  • Driver BrandBuild-in driver
  • Total Homonic Distortion<10%
  • Dimming1-10V; DALI2
  • Power Factor0.9
  • SPD4KV
  • SocketNEMA; Zhaga
  • Light Distribution60° /90°/120°
  • Ambient Temperature-30℃~45℃
  • Life Time50,000 h
  • Warranty5 years
  • More Less
    • Model:
      60W
      100W
      150W
      200W
    Description Specs
    Description
    Product Summary:
    The Venus Series LED High Bay Light adopts compact ultra-thin design optimised for heat dissipation and less dust accumulation. Build-in driver offers advantages in quality and price.

    Features:


    • Compact ultra-thin design, high visual comfort.
    • Build-in driver design offers advantages in quality and price
    • High energy-saving compared to traditional halogen lamps
    • Emergency lighting with optional battery
    • Fast ROI thanks to long life span and reduced maintenance
    • Compact housing optimized for heat dissipation and less dust accumulation
    • Abundant accessories

    Light Distribution Curve:
    The beam angle is 60°/90°/120°.


    Abundant Accessories:


    Typical Application Senario:

    • Sport Facilities
    • Industrial and Commercial Halls
    • Warehouses
    • Car Parks
    • Large Areas
    Specs
    Model All series (60W~200W)
    Input Voltage AC220~240V 50/60Hz
    Power Factor 0.9
    Luminous Efficacy 140lm/W; 160lm/W
    CCT 3000K/4000K/5000K/5700K/6500K
    CRI Ra70; 80
    THD 15%
    Beam angle 60°/90°/120°
    Surge Protection 4kV-Line-Line, 4kV-Line-Earth
    Shell Material Housing: die-casting aluminum Light-emitting surface: PC
    Switching Cycles 100,000 times
    Lifespan L70@25 50,000h
    Operating Temp. -30~45

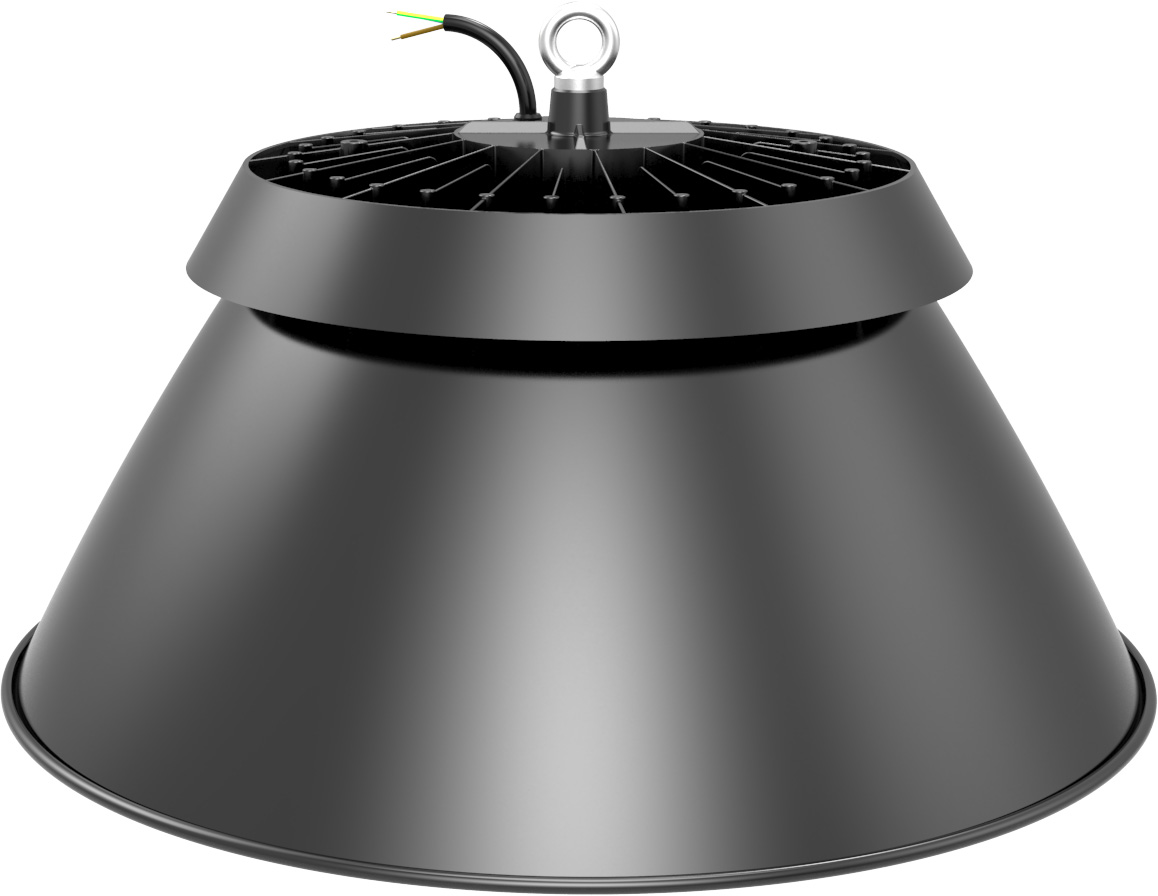

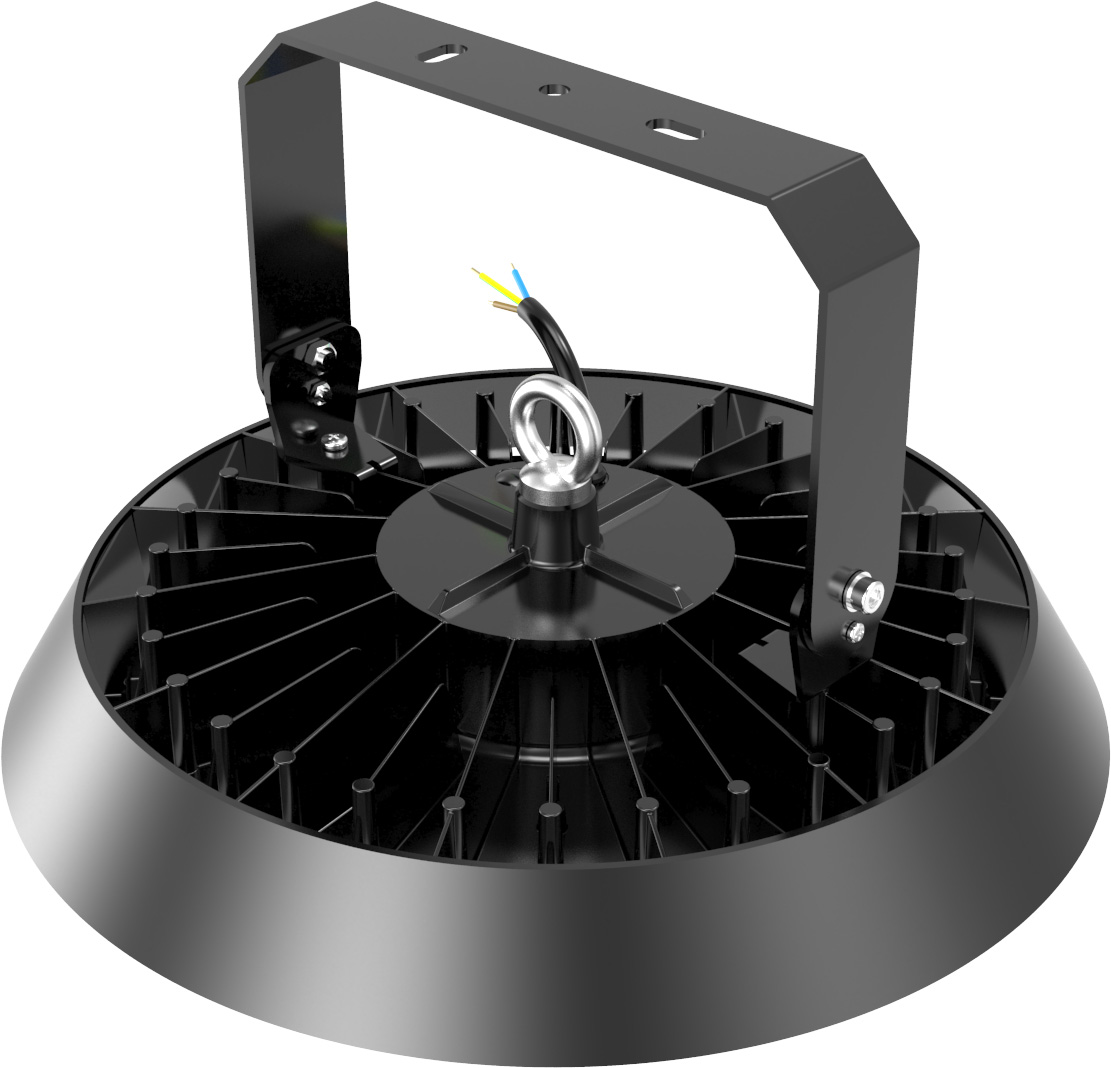

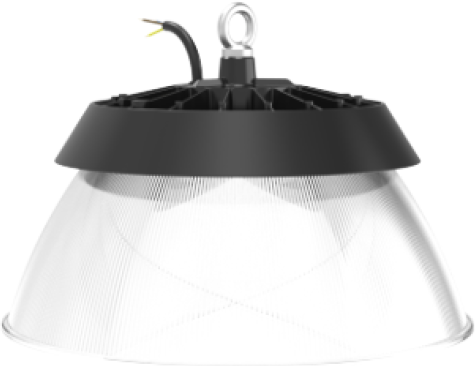

    Accessories Anti-glare reflector, U -shaped bracket, anti-fall rope
    Protection Rating IP65,IK09

    Model Venus-60 Venus-100 Venus-150 Venus-200
    Power 60W 100W 150W 200W
    Dimensions (not including bracket) Ø260×120 mm Ø310×125 mm Ø350×125 mm
    Weight 1.6kg 1.9kg 2.3kg
