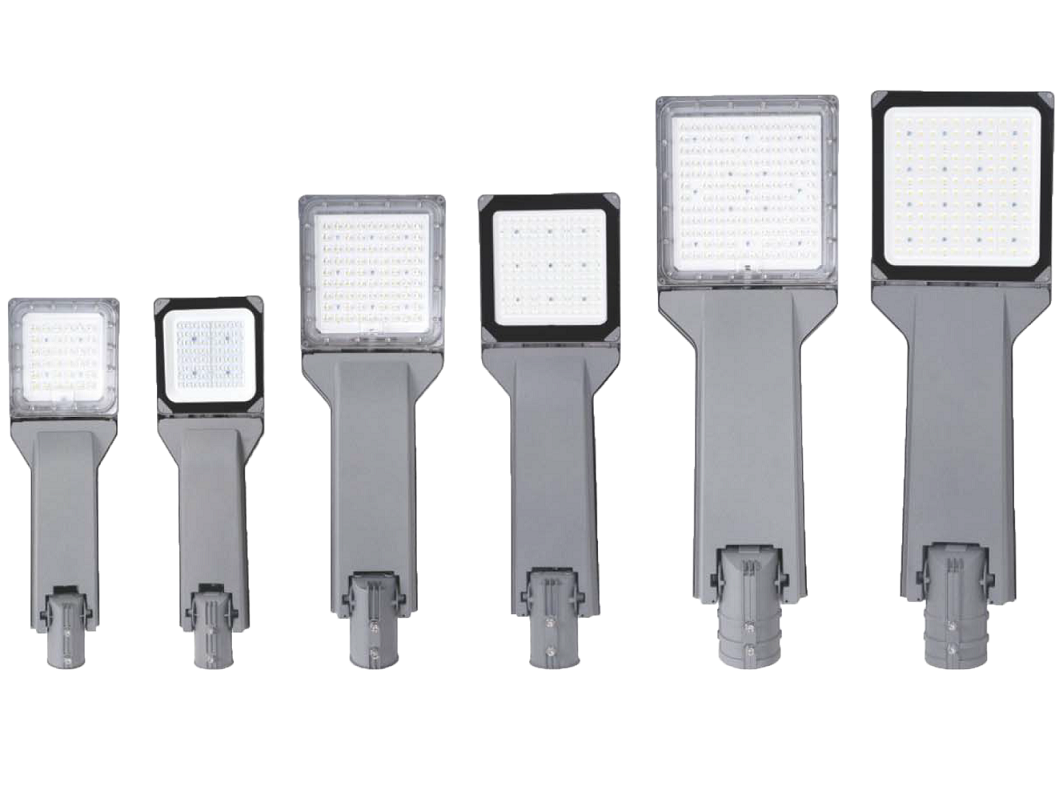

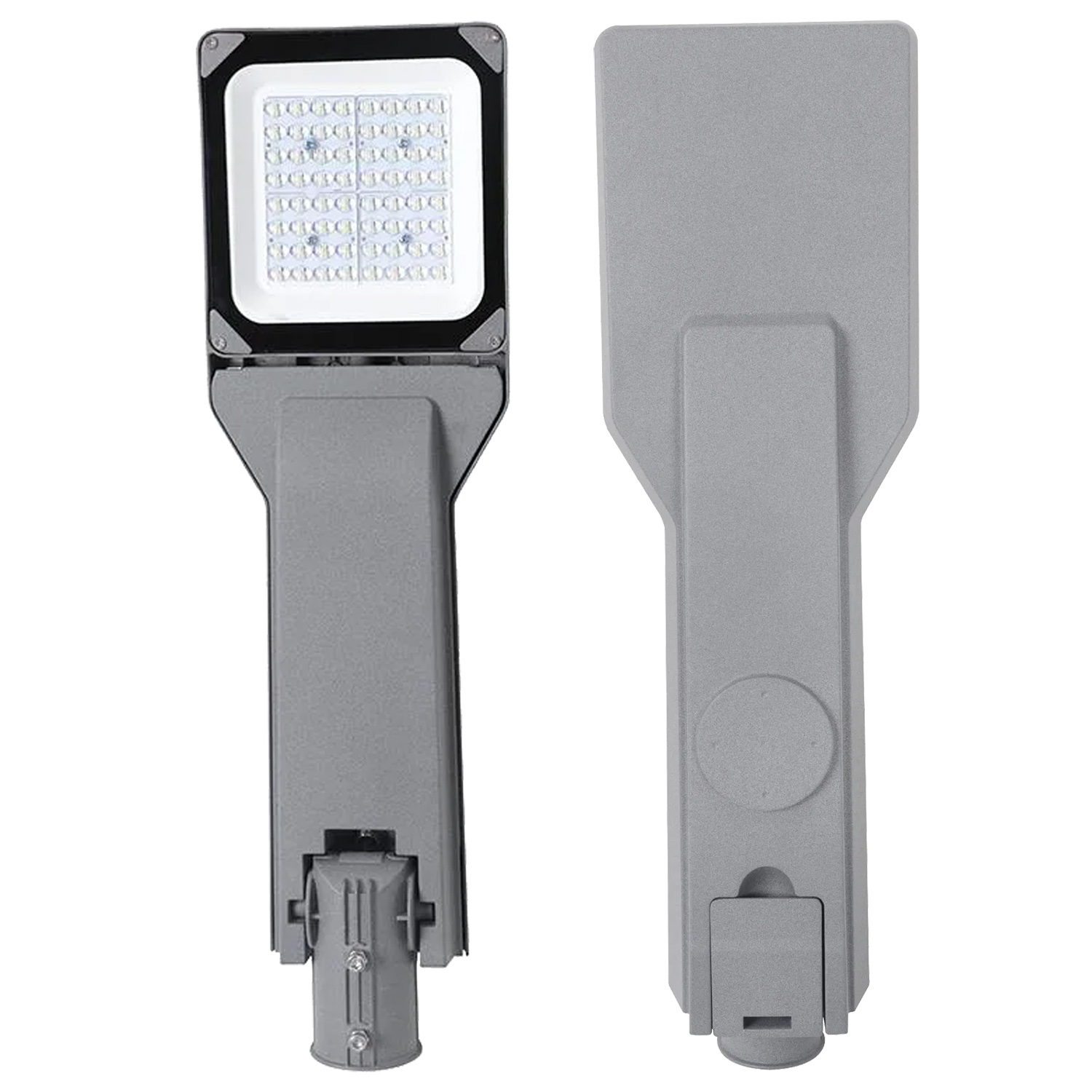

Product Summary:
The Realshine’s Tesla Series LED street light adopts LED chips and driver separation design, has sharp edged appearance and better heat dissipation . This LED luminaire's adjustable arm supports both horizontal and vertical installation.

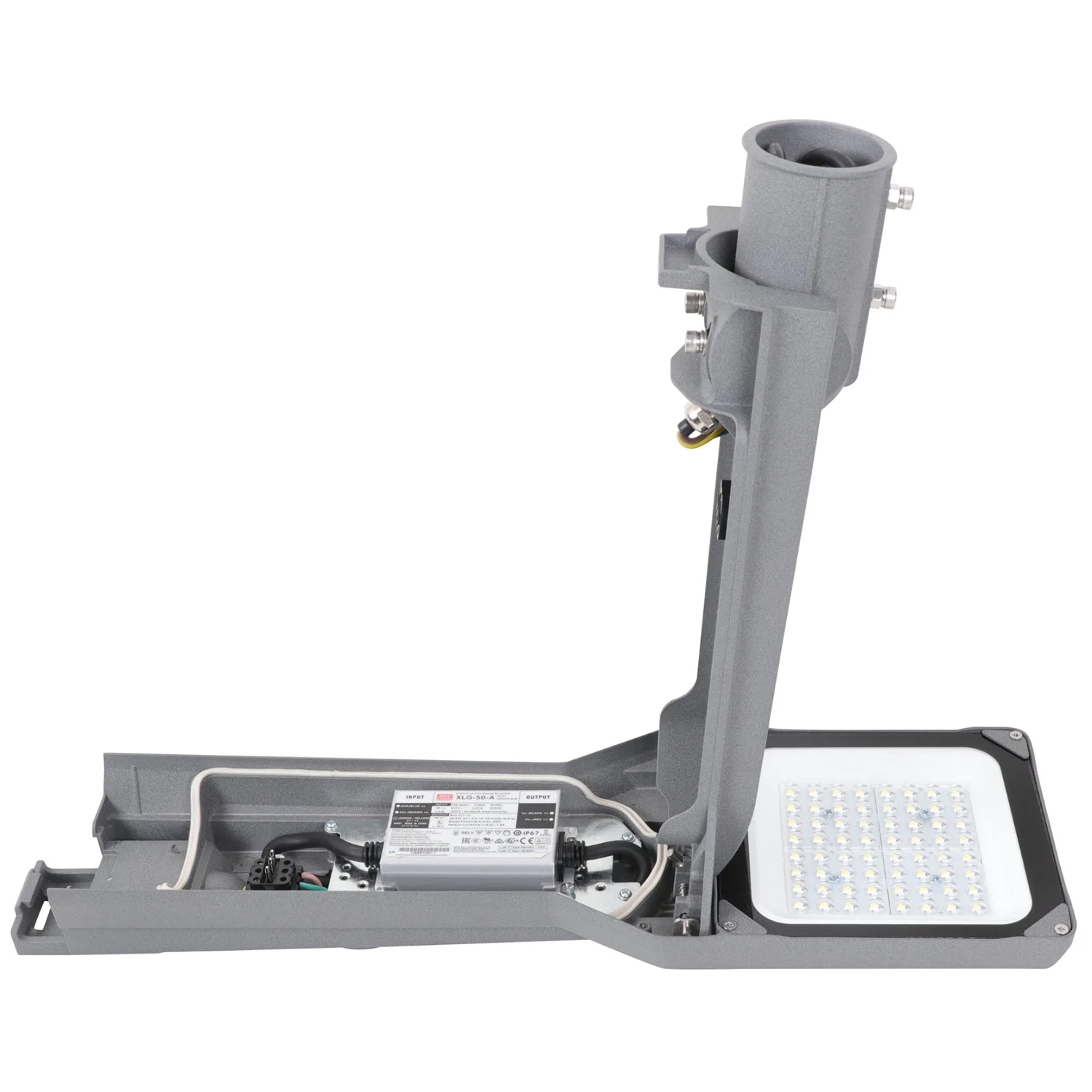

Product Explosion Diagram:
Light Distribution Curve:
Installation adjustable angle:
Both Horizontal and Vertical available and adjustable angle-10°to+15°
Dimension Diagram:
| Model | All Series(30W~200W) |
| Input Voltage | 100-277VAC, 50-60Hz |
| PF | ≥0.95 |
| Luminous Efficacy | 130~150lm/W |
| CCT | 3000K-5700K |
| THD | <10% |
| CRI | >70 (>80 available) |
| SDCM | ≤6 |
| Beam Angle | T1, T2M, T3M, T4M, T5 |
| LifeTime @L70 | >50,000h |
| Switching Cycle | 100,000 times |
| Dimmable Options | 1-10V, LoRa, Zigbee, NB-IoT |
| SPD | 6kV/10kV |
| Material | Body: Aluminum, Toughened Glass Cover |
| IP Rating | IP66 |
| IK Rating | IK08 |
| Warranty | 5 years |
| Model | Tesla-30 | Tesla-40 | Tesla-50 | Tesla-60 | Tesla-80 | Tesla-100 | Tesla-120 | Tesla-150 | Tesla-180 | Tesla-200 |
| Power | 30W | 40W | 50W | 60W | 80W | 100W | 120W | 150W | 180W | 200W |
| Dimension | 563.5*165*110 mm | 719*216*111 mm | 836*266*138 mm | |||||||
