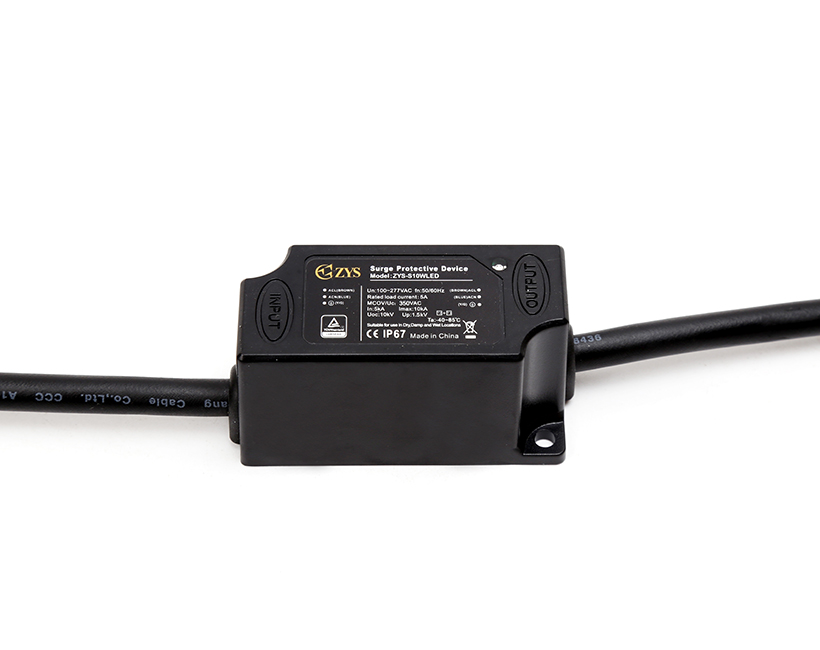

ZYS-S10WLED series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns.The protection device must be metal oxide varistor type MOV (Metal Oxide Varistor).
Features：
Applicable to class I or II lamps
Built in protection mode: L-N, L-PE, N-PE
Built in thermal separation function for higher security
Series isolation design, excellent protection performance
Excellent surge resistance and very low residual voltage
Double insulation cable and wire
Small and convenient for embedded installation
IP67 dust proof and waterproof grade
With LED indicator.The LED indicator will be on if it works. The material is UV/IR resistance and flame retarded
| Model | ZYS-S10WLED |
| Rated working voltage/Un（VAC） | 100-277V |
| Maximum continuous working voltage/MCOV/UC(VAC) *1 | 350V |
| Rated load current/IL(A) | 5A |
| Nominal discharge current/In(kA)*2 | 5KA |
| Maximum Discharge Current/Imax(Ka) *3 | 10KA |
| Surge Impulse Voltage/Uoc（KV） | 10KV |
| Voltage Protection Level/Up(V) *4 | ≤1.5KV(L-N,L-G/PE,N-G/PE) |
| Power Supply System | TN |
| Waterproof grade | IP67 |
| Work environment | -40℃~+85℃ |
| EN 61643-11 test classification | Type 5 |
