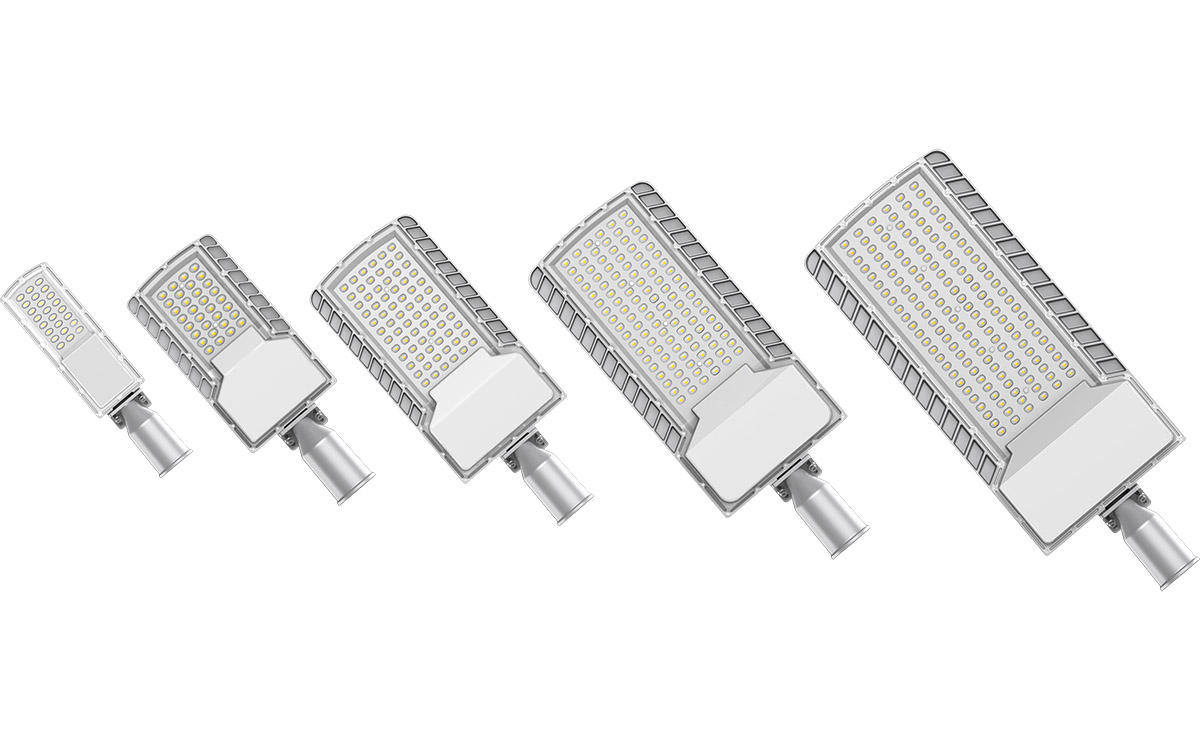

Oscar Series LED Street Light 20W-240W

High luminous efficacy, up to 180lm/W. Adjustable arm supporting both horizontal and vertical installation.
  • Wattage20W~240W
  • Input Voltage100V-277V
  • Lumen Efficacy180lm/W
  • MaterialADC12 aluminum
  • Protection RatingIP67;IK08
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceYes
  • InstallationCompatible to Post-top mounting and Side-entry mounting
  • Color Temperature3000K/4000K/5000K/5700K/6000K
  • C.R.I70
  • Driver BrandMeanwell/Moso/Sosen/Inventronics
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI;
  • Power Factor0.95
  • SocketNEMA; Zhaga
  • Light DistributionType II
  • Ambient Temperature-40℃-50℃
  • Warranty5 years
  • More Less
    • Model:
    Description Specifications

    Product Summary:

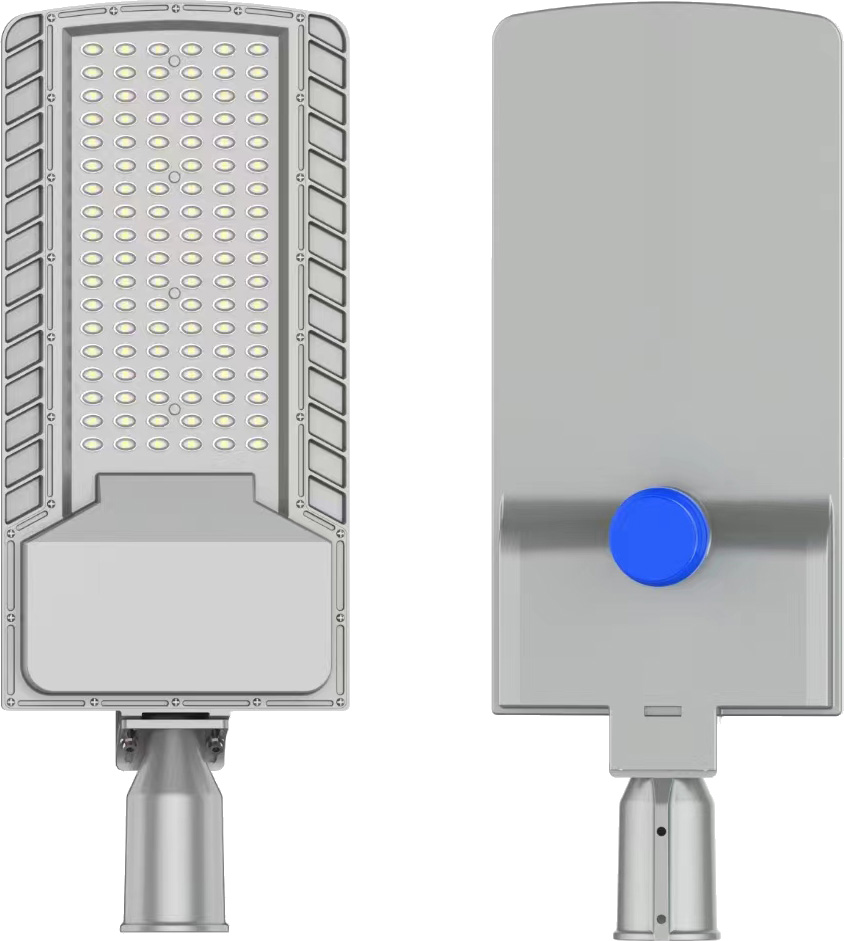

    The Oscar Series LED Street Light adopts flat honeycomb design for better heat dissipation. This LED street lamp's adjustable arm supports both horizontal and vertical installation.

    Features and Benefits:

    • Flat honeycomb design,  integrated die-casting AL.
    • High luminous efficacy, up to 180lm/W.
    • Use professional anti-glare full cut-off light distribution:T2

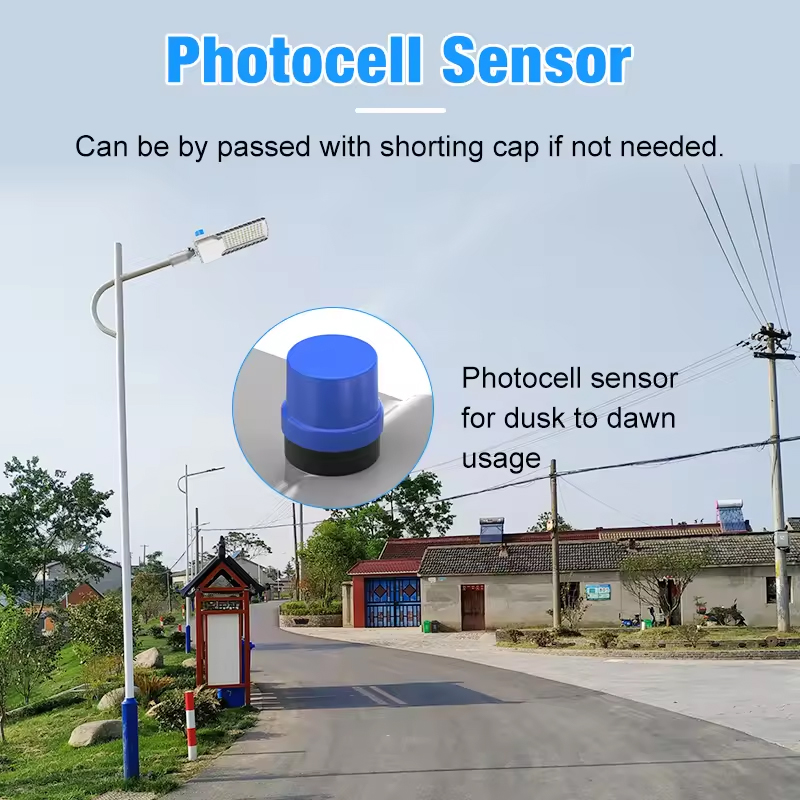

    • 0-10V dimming / time control / light sensor / lOT control available.
    • Angle of mounting shaft can be installed and adjusted 90°/180°(±15°).
    • The ingress protection rating reaches IP67.
    • 5 years warranty.

    Light Distribution Curve:
    Oscar Series LED Street Light Light Distribution Curve

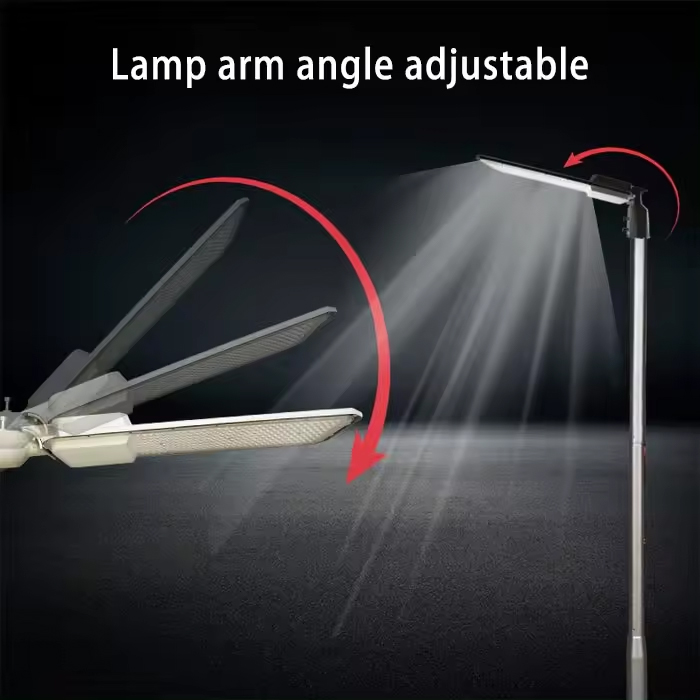

    Installation angle can be adjusted:
    Oscar Series LED Street Light adjustable installation angle


    Model All Series (20W~240W)
    Input Voltage 100-277VAC, 50-60Hz
    PF 0.95
    Power Supply Efficiency >90%
    Luminous Efficacy 180lm/W
    CCT 2700K~6000K
    THD 15%
    CRI Ra>70
    Beam Angle  Type II
    LED Driver Meanwell/Moso/Sosen/Inventronics
    Housing  Die-casting ADC12
    Operating Temp. -40~50
    IP/IK Rating IP67 / IK08
    Waranty 5  years

    Model Oscar-30 Oscar-50 Oscar-100 Oscar-150 Oscar-200
    Power 20W-40W 50W-70W 80W-120W 150W-180W 200W-240W
    Dimension (mm) 438*108*75  467*175*75 564*221*75 647*241*75 740*276*75
    Weight (kg) 1.15 1.54 1.89 2.21 2.5
