Neptune Series LED High Bay Light 100W-240W with Motion Sensor

High luminous efficacy up to 210LPW. Light-on-demand feature with optional motion sensor;
  • Wattage100W~240W
  • Input Voltage120V-277V
  • Lumen Efficacy150lm/W; 170lm/W; 190lm/W; 210lm/W;
  • MaterialADC12 aluminum; PC lens; Glass cover
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A
  • InstallationBracket; Chain
  • Color Temperature3000K/4000K/5000K/5700K/6500K
  • C.R.I70;80
  • Driver BrandHaisen
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI
  • Power Factor0.9
  • SPD6KV
  • SocketNEMA; Zhaga
  • Light Distribution60° /90°/120°
  • Ambient Temperature-30℃~45℃
  • Life Time100,000 h
  • Warranty5 years
  • More Less
    • Model:
      100W
      150W
      200W
      240W
    Description Specifications
    Description

    Product Summary:

    The Realshine Neptune series is a true game-changer in the industrial lighting field. It sets a new standard for efficacy with its exceptional luminous efficacy that reaches up to 210 lumens per watt (lm/W). By incorporating the Neptune series into their operations, companies can experience substantial reductions in energy consumption and enjoy a high ROI.



    At Realshine, we understand the importance of providing optimal lighting solutions for industrial spaces. That's why we offer multiple driver options, including Philips, Lifud, Moso, and Sosen, for our high bay lighting. Our drivers ensure high-quality lighting while promoting superior energy efficiency, allowing for a significant reduction in energy costs.


    Additionally, our lighting solutions feature motion sensor integration options that ensure light is delivered precisely where it's needed, providing further energy savings. Choose Realshine for a reliable, energy-efficient, and cost-effective lighting solution.

    Driver can be customized
    Features:
    • High luminous efficacy up to 210LPW.
    • Fast ROl thanks to long life span and reduced maintenance.
    • Light-on-demand feature with optional motion sensor.
    • Compact housing optimised for heat dissipation and reduced dust accumulation
    • Abundant accessories.
    5 years warranty.

    Light Distribution Curve:
    • Our precise beam angle design sets us apart from other suppliers in the industry who use generic public lenses in their UFO Shape High Bay products. At our company, we take pride in designing our own lenses, which result in higher efficacy and more precise beam control for our customers.
    • The beam angle 60°/90°/120° is available.
    Light distribution curve of Realshine Neptune Series Light

    Abundant Accessories:

    Accessories of of Realshine Neptune Series Light


    Motion Sensor:

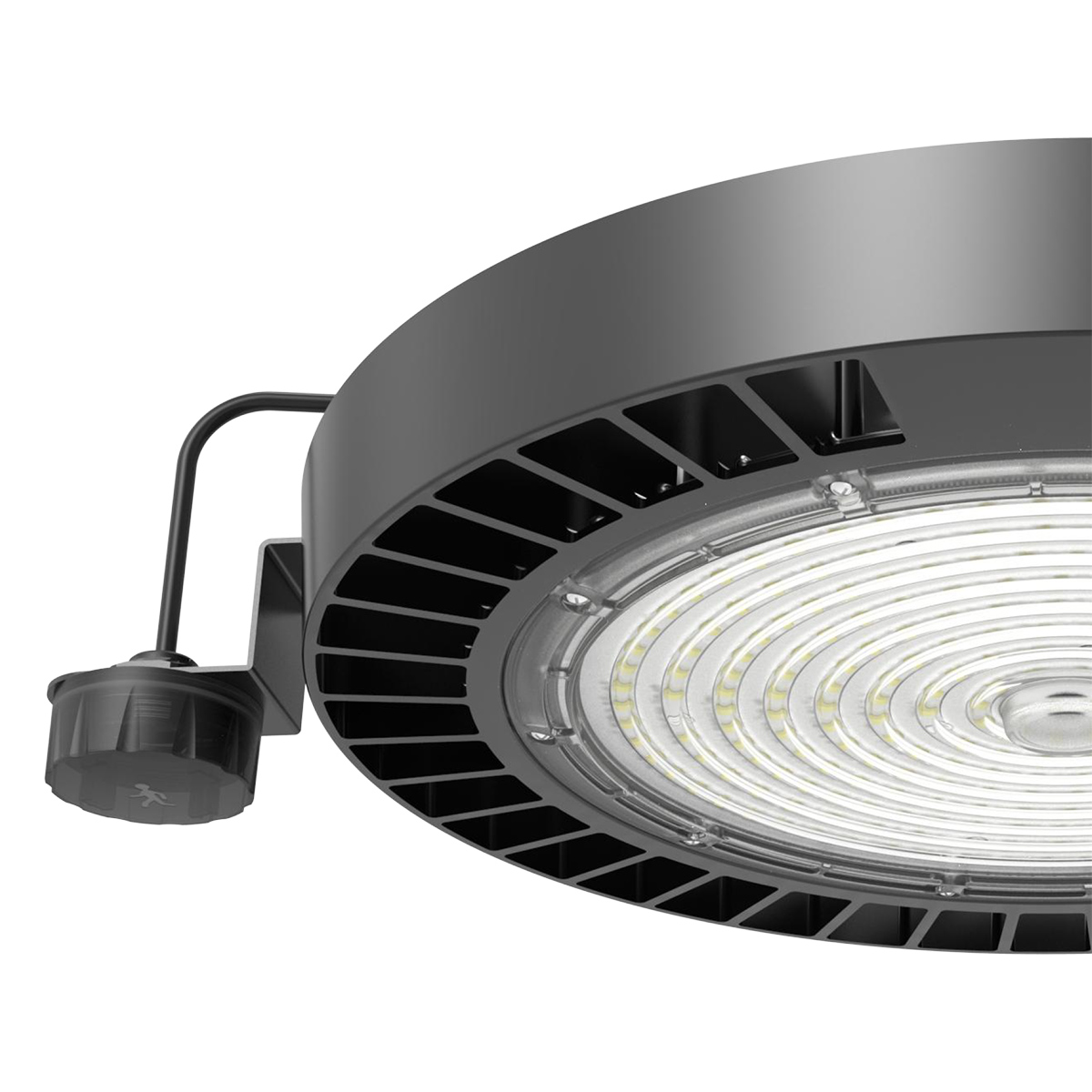

    Motion sensor of Realshine Neptune Series Light

    Application Scenario:

    With its high level of efficiency, this lighting system is the optimal choice for warehouses, factories, halls, and other industrial sites. It provides a distinct advantage over its competitors, standing out as the perfect lighting solution for these environments.

    Specifications
    Model All series (100W~240W)
    Input Voltage AC120~277V 50/60Hz
    Power Factor 0.9
    Luminous Efficacy 210lm/W; 190lm/W; 170lm/W; 150lm/W;
    CCT 3000K/4000K/5000K/5700K/6500K
    CRI Ra70/80
    THD 15%
    Beam angle 60°/90°/120°
    Surge Protection 6kV-Line-Line, 6kV-Line-Earth
    Shell Material Housing: die-casting aluminum Light-emitting surface: PC
    Switching Cycles 100,000 times
    Lifespan L70@25 100,000h
    Operating Temp. -30~45
    Accessories Optional U -shaped bracket, Anti-fall rope, Anti-glare Refector, Motion sensor
    Mounting Option Loop Hanging,Bracket Mounting
    Protection Rating IP65,IK09

    Model Neptune-100 Neptune-150 Neptune-200 Neptune-240
    Power 100W 150W 200W 240W
    Dimensions (not including bracket) Ø257×155 mm Ø298×156 mm Ø353×161 mm
    Package Size 310*310*170 360*360*175 400*400*180
    Net Weight 2.1kg 2.5kg 3.2kg
    Gross Weight 2.6kg 3.1kg 4.0kg


    Dimension of Realshine Neptune Series Light
