Shineline Series Tri-Proof Light18W-46W

IP66 IK08 LED Extrusion tri-proof fixture
  • Input Voltage220V-240V
  • Lumen Efficacy120lm/W
  • Power Factor>0.9
  • CCT3000K/4000K/5000K/6000K/6500K
  • CRI>80
  • IP Rating66
  • Warranty3-5 years
  • FlickeringNon Flickering
  • SDCM<3
  • LED2835SMD
  • MountingCeiling; Suspended
  • Beam AngleClass II, EMC
  • More Less
    Description Specs

    Product Summary:
    The durable
    Shineline series tri-proof LED fixture is designed for demanding applications involving dust, vapor, dirt, smoke, heavy impacts, high levels of humidity, and risk of corrosion. The energy-saving LED fixture provides reliable, long-lasting light solutions for parking garages, horse barns, pool areas, warehouses, industrial kitchens, car washes, stairwells or food processing facilities. Damp and wet location suitable. Highly resistant to jets of water. Reliable operation in temperature variations (operating temperature: -20°C to 45°C). Easy installation, suitable for ceiling, surface or pendant mounting. Available in 600mm, 1200mm and 1500mm versions.


    • Tool free maintenance.

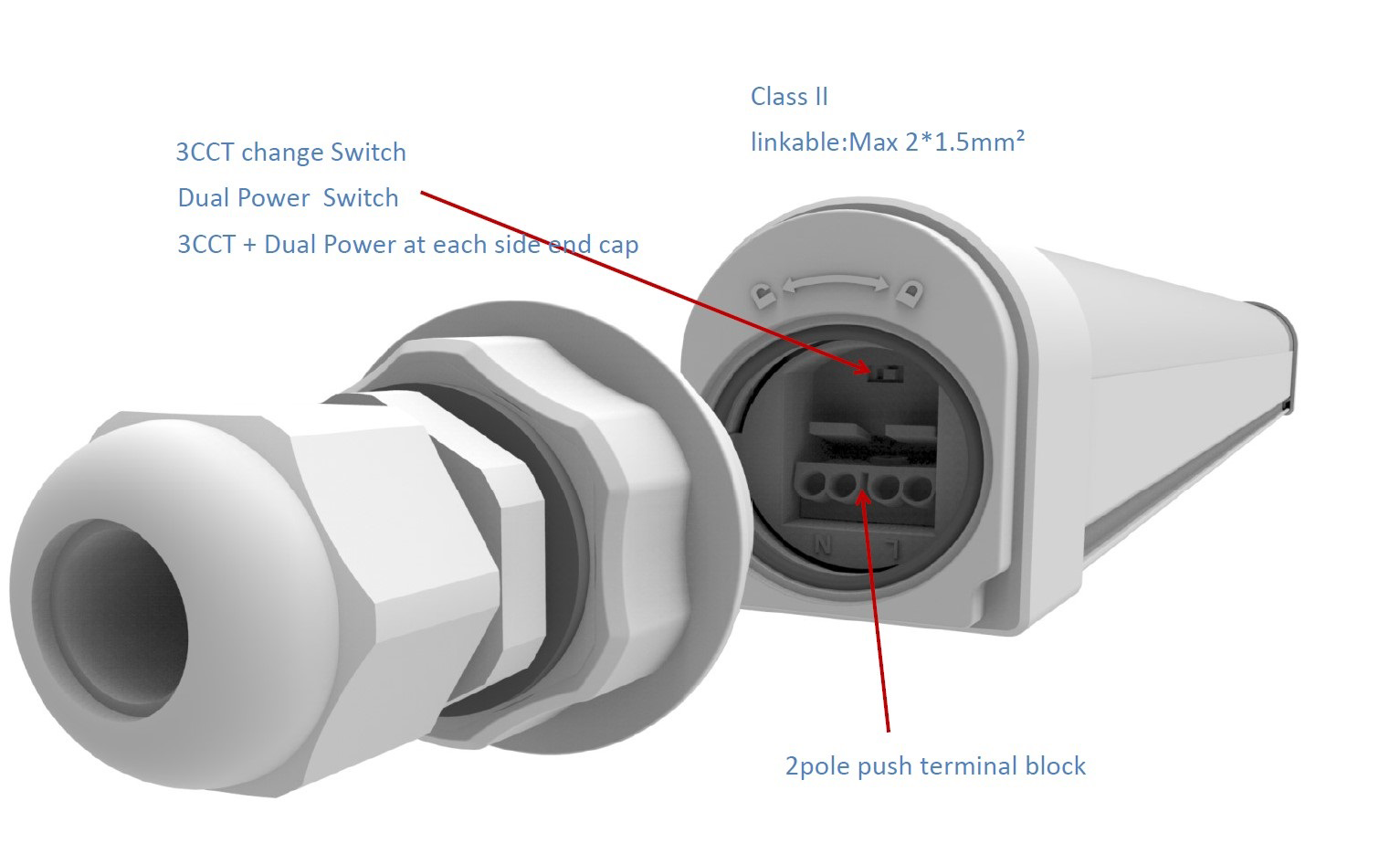

    • Change CCT between 3000K 4000K 6500K by DIP switch.
    • Dual Power by DIP switch.
    • Linkable: Max 2*1.5mm².
    • 3-5 years warranty.
    Model ShineLine-0.6m-18W ShineLine-1.2m-36W ShineLine-1.5m-46W
    Power  18W 36W 46W

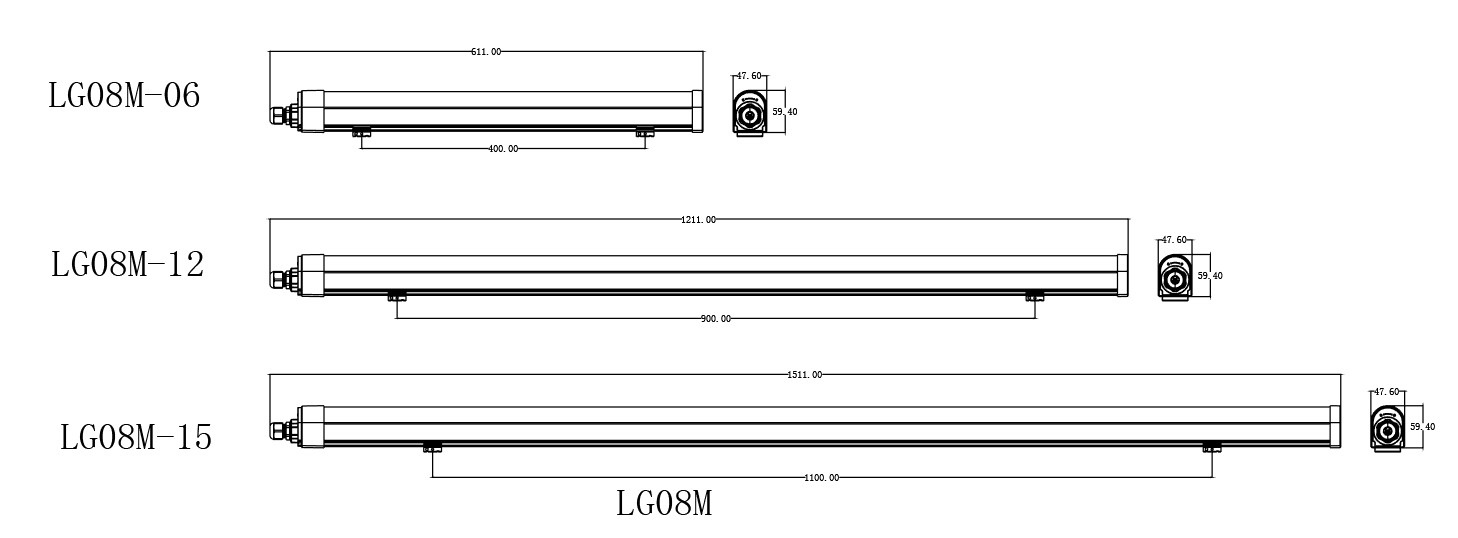

    Dimension 611*48*60mm 1211*48*60mm 1511*48*60mm
    Luminous Flux 2160lm 4320lm 5520lm
    Input Voltage  220V-240VAC 50/60Hz
    Lumen Efficiency 120lm/W
    PF  >0.9
    THD <15%
    CCT 3000-6500K
    CRI  Ra>80
    IP Rating IP66
    IK Rating IK08
