Product Summary:

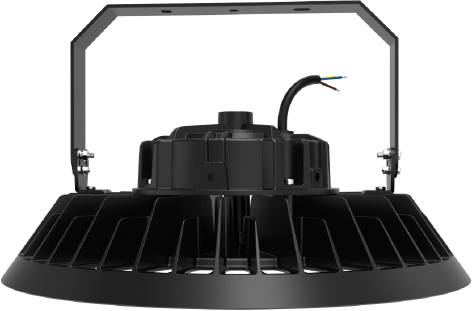

The Karina Series LED High Bay Light adopts compact fin design for better heat dissipation. Independent driver design offers wide wattage range from 60W to 300W.
Motion Sensor:
Typical Application Senario:
| Model | All series (60W~300W) |
| Input Voltage | AC120~277V 50/60Hz |
| PF | ≥ 0.9 |
| Luminous Efficacy | 210lm/W; 190lm/W; 170lm/W; 150lm/W; |
| CCT | 3000K/4000K/5000K/5700K/6500K |
| CRI | Ra≥70; 80 |
| THD | ＜15% |
| Beam angle | 60°/90°/120° |
| Surge Protection | 6kV-Line-Line, 6kV-Line-Earth |
| Control Protocol | 1-10V, DALI2 (optional) |
| Sensor | Motion sensor (optional) |

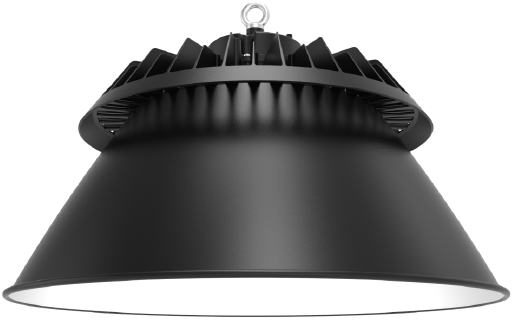

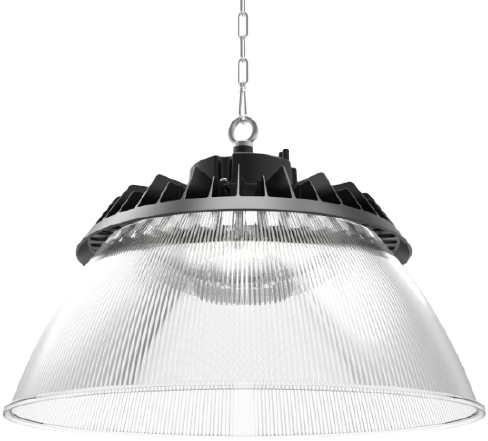

| Accessories | Anti-glare reflector, U -shaped bracket, anti-fall rope |
| Shell Material | Housing: die-casting aluminum |
| Switching Cycles | ＞100,000 times |
| Lifespan | L70B10>100,000h; L80B10>50,000h; |
| Operating Temp. | -30℃~45℃ |
| Protection Rating | IP65,IK09 |
| Model | Karina-60 | Karina-100 | Karina-150 | Karina-200 | Karina-240 | Karina-300 |
| Power | 60W | 100W | 150W | 200W | 240W | 300W |
| Dimensions (not including bracket) | Ø273×161 mm | Ø308×166 mm | Ø349×166 mm | Ø400×193 mm | ||
| Weight | 2.0kg | 2.6kg | 3.0kg | 5.0kg | ||
