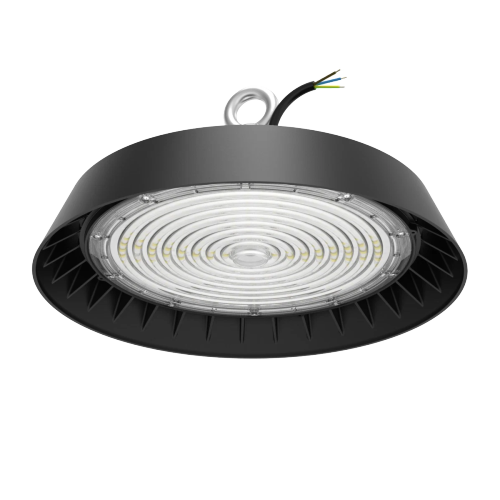

Jupiter Series LED High Bay Light 60W-500W

Multiple beam angle. Motion sensor increase energy-saving. Abundant accessories.
  • Wattage60W~500W
  • Input Voltage120V-277V
  • Lumen Efficacy140~190lm/W
  • MaterialADC12 aluminum; PC lens
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A
  • InstallationBracket; Chain
  • Color Temperature3000K/4000K/5000K/5700K/6000K/6500K
  • C.R.I70;80
  • Driver BrandSosen;Philips;Lifud
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI2
  • Power Factor0.9
  • SPD6KV
  • SocketNEMA; Zhaga
  • Light Distribution15°/30°/60°/90°/120°
  • Ambient Temperature-30℃~45℃
  • Life Time100,000 h
  • Warranty5 years
  • More Less
    • Model:
    Description Specifications

    Product Summary:

    The Jupiter Series LED High Bay Light provides wide wattage range, multiple beam angles from 15° to 120° and reduntant accessories. The supporting motion sensor can be programmed to increase energy-saving, customized detection range, daylight, threshold, timer, and dimming settings..


    • Multiple power for choice, up to 500W.
    • Fast ROl thanks to long life span and reduced maintenance.

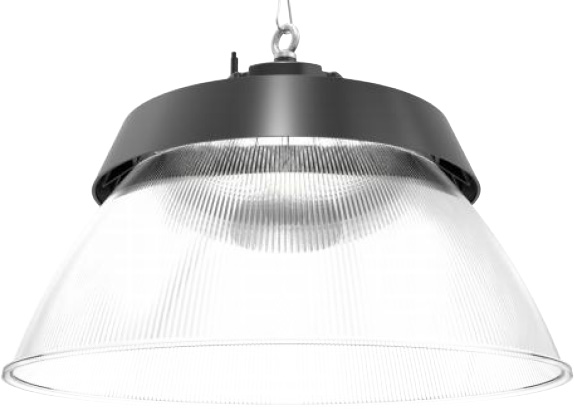

    • Anti-glare reflector.
    • Compact housing optimized for heat dissipation and reduced dust accumulation.
    • Dedicated range of mounting accessories.
    • Multiple light distribution 15°, 30°, 60°, 90°, 120°.
    • 5 years warranty.

    Light Distribution Curve:

    Reduntant Accessories:

    Dimension Drawing:
    dimension drawing of Jupiter light

    dimension drawing of Jupiter light with reflector

    Typical Application:
    • Sport Facilities
    • Industrial and Commercial Halls
    • Warehouses
    • Car Parks
    • Large Areas
    Model All series (60W~500W)
    Input Voltage AC120~277V 50/60Hz
    Power Factor 0.9
    Luminous Efficacy 140~190lm/W
    CCT 3000K/4000K/5000K/5700K/6500K
    CRI Ra70; 80
    THD <15%
    SDCM 5
    Beam angle 15°/30°/60°/90°/120°
    Surge Protection 6kV-Line-Line, 6kV-Line-Earth
    Switching Cycles 100,000 times
    Lifespan L70@25 100,000h
    Operating Temp. -30~45
    Sensor Motion sensor (optional)
    Shell Material Housing: die-casting aluminum Light-emitting surface: PC

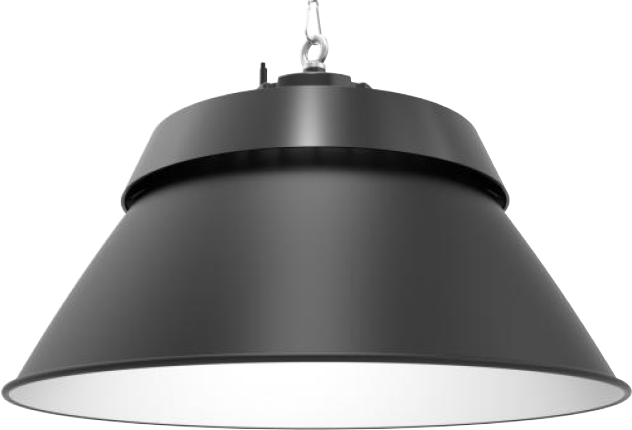

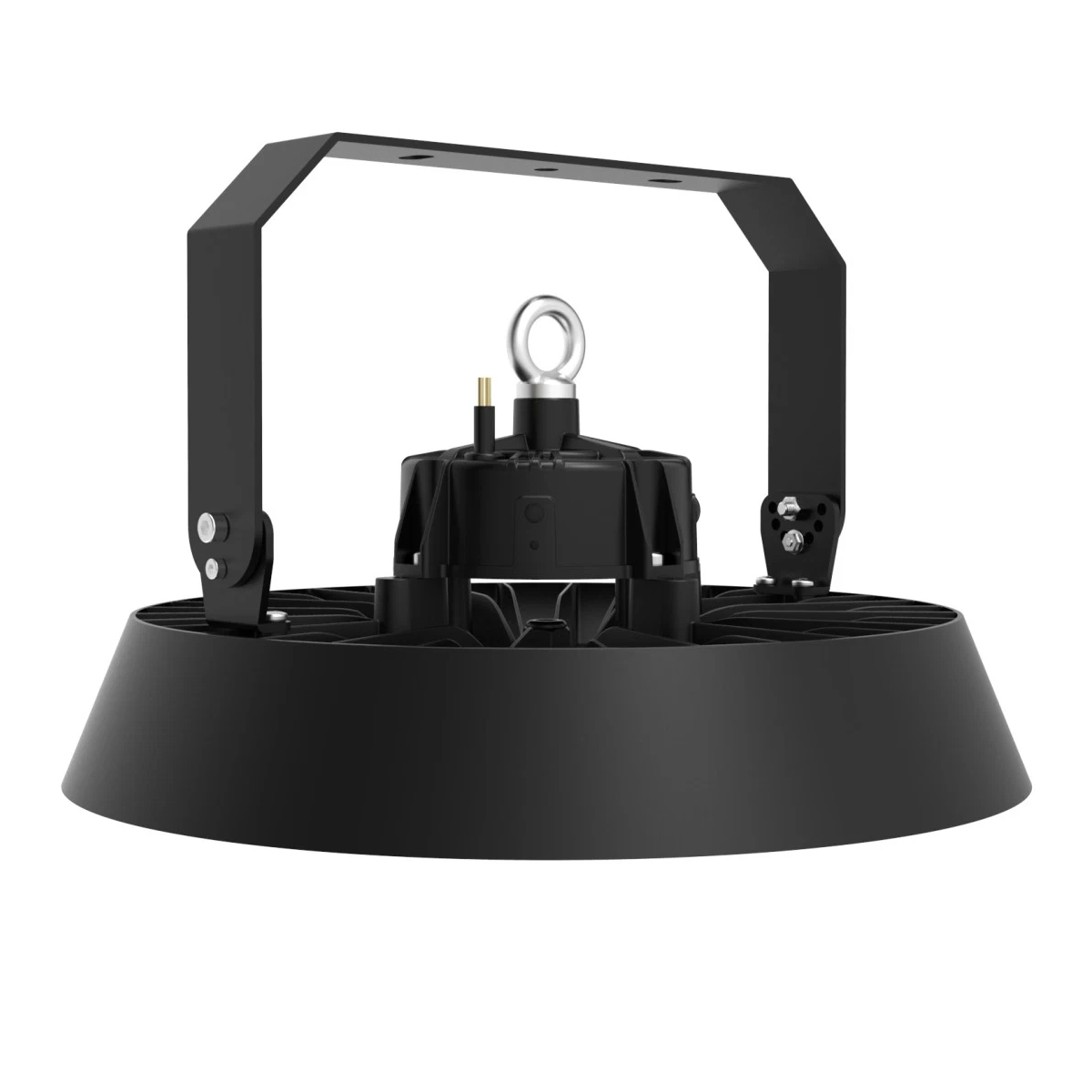

    Accessories Anti-glare reflector, U -shaped bracket, anti-fall rope
    Protection level IP65,IK09

    Model Jupiter-60 Jupiter-100 Jupiter-150 Jupiter-200 Jupiter-240 Jupiter-300
    Power 60W 100W 150W 200W 240W 300W
    Dimensions (not including bracket) Ø260×162 mm Ø310×169 mm Ø350×177 mm Ø400×197 mm
    Weight 1.9kg 2.3kg 2.9kg 4.9kg
