JL-240 Series NEMA 7 Pin Twist Lock Photocell Receptacle

Summary:
All the JL-240 series NEMA 7 Pin twist lock photocell receptacle were designed for the LED street lights those intended to have an ANSIC136.10-2006 receptacle to fit a Twist-Lock photocontrol. This series conform newly published ANSIC136.41-2013 to allow a LED lamp multi-controlled through the Photocell Receptacle.

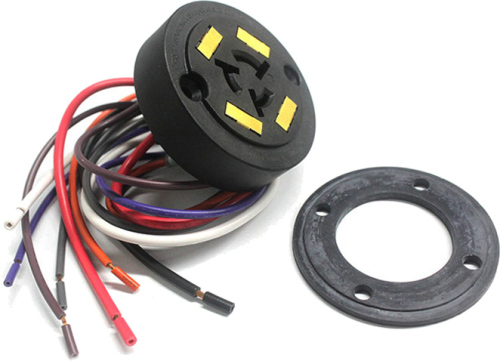

This JL-240 ANSIC136.41 Photocell Socket offers 2 or 4 gold-plated low voltage pads on the top surface to fit photocontrol has ANSIC136.41 conforming spring contacts, and offers male quick connectors at rear back for signal connection.

This series also offers 360 degree rotation limiting feature to conform ANSI C136.10 requirements.

Both JL-240X and JL-240Y have been recognized, and JL-200Z14 has been listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2.

Features:

• ANSI C136.41-2013 to allow a LED lamp multi-controlled through thereceptacle.

• Offers 2 or 4 gold-plated low voltage pads on the topsurface to fit photocontrol has ANSIC136.41conforming spring contacts.

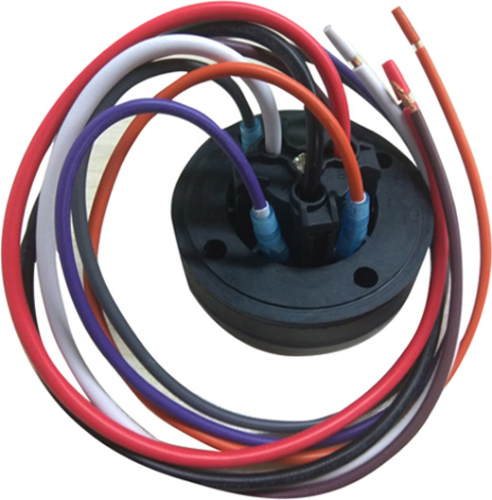

• Offers male quick connectors at rear back for signalconnection.

• Listed by UL to applicable US and Canadian safety standards, under their file E188110, Vol.1 & Vol.2
