JL-207 Twist-lock Photocell sensor for LED street light

Photocell Sensor for Street Lighting Control
Description Specifications

Product Summary:

The JL-207 series photocell sensor is applicable to control the street lights, garden lights, passage lights and doorway lights automatically in accordance with the ambient natural lighting level.

This product is designed with microprocessor circuits with either sensors of CdS photocell (Cadmium Sulfide photocell , also known as photoconductive cell, light dependent resistor, photoresistor or photoconductor), photodiode or IR-filtered phototransistor and a surge arrester (MOV metal-oxide varistor) is provided. Its quicker response with time delay of 0-20 seconds offers easy-to-test feature.

Further, a preset 5-20 seconds time-delay might avoid mis-operation due to spotlight or lightning during the night time.

This product provides twist lock terminals meeting the requirements of ANSIC136.10-2017 and the Standard for Plug-In, Locking Type Photocontrols for Use with Area Lighting UL773, Listed by UL for both US and Canada markets.

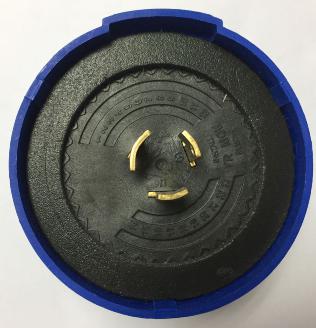

  • ANSI C136.10-2017 Twist Lock
  • Time Delay of 3-5 seconds
  • Surge Arrester Built-In
  • Photodiode Sensor
  • Fail-On Mode
  • Turn-off in Mid-night


  1. Disconnect power; wire the color coded receptacle according to the diagram below.
  2. Push the photocontroller on and twist it clockwise to lock it into the receptacle.

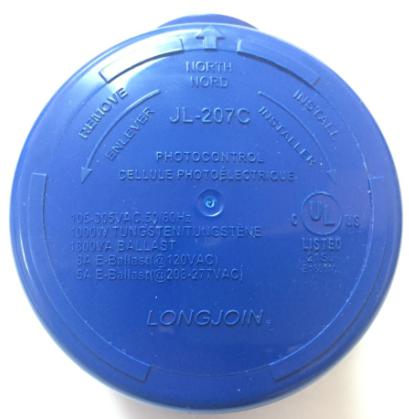

  3. Install the photocontroller with the Photocell facing the NORTH direction as indicated on the top of the photocontroller.
  4. Adjust the receptacle position if necessary.
Model JL-207C
Rated Voltage 110-277VAC
Applicable Voltage Range 105-305VAC
Rated Frequency 50/60Hz
Rated Loading 1000W Tungsten,1800VA Ballast
Power Consumption 1.5VA
On/Off Level 6Lx On 50Lx Off
Ambient Temp. -40°C~+70°C
Related Humidity 99%
Overall Size 84(Dia.) x 66mm
Weight Approx. 85g
