Hubble Series LED Flood Light 50W-280W with Photocell Sensor Waterproof IP66

Intelligent photocontrol, energy saving, long lifespan, Angle adjustable dial, easy to install.
  • Wattage50W~280W
  • Input VoltageAC100V-277V 50/60Hz
  • Lumen Efficacy140 LPW
  • MaterialLamp Body: Die-cast Aluminum Light-emitting surface: Glass
  • Protection RatingIP66, IK09
  • Independent Driver CompartmentNo
  • InstallationSurface Mounting, Side Mounting, Ceiling Mounting
  • Color Temperature3000K/4000K/5700K/6500K
  • C.R.I70/80/90
  • Driver BrandInventronics/MeanWell
  • Total Homonic Distortion≤8%
  • Dimming0-10V, DALI, Sensor, LoRa, Zhaga
  • Power Factor≥0.97
  • SPD6KV
  • SocketNEMA; Zhaga
  • Light Distribution30°/60°/90°/P45°
  • Ambient Temperature-30℃-50℃
  • Life TimeL70@25℃ 102,000h
  • Warranty5 years
  • More Less
    • Model:
    Description Specifications

    Product Summary:

    The Hubble Series LED Flood Light has elegant appearance thanks to compact housing, seamless frame and the built-in power supply. Universal mounting bracket and angle adjustmentdial makes installing the HUBBLE a breeze. Power supply will produce a lot of heat in the workand heat will go up, hollow design is to cut off heatsource and lower junction temperature of LED lightsource.

    Hubble Series slim flood light comes with robust aluminium housing, safety tempered glass cove, high quality led driver and delivers high lumen efficacy up to 140lm/w. With asymmetrical polarised optics to minimise glare, light spill, improve lux levels and uniformity. An ideal solution for most outdoor applications, can be wall mounted around buildings and pathways.

    The fixtures use LED technology, which provides a longer lifespan and lower maintenance requirements compared to traditional lighting sources. Additionally, the Hubble series is designed to be IP66 rated, meaning that it is protected against dust and water ingress, making it suitable for use in various weather conditions.
    The Hubble series is designed for easy installation and comes with adjustable brackets for flexible positioning. The fixtures are also built to withstand physical impact and vibrational stress, ensuring long-lasting and reliable performance in demanding environments.
    Overall, the Hubble Series 50W-280W LED Floodlight provides a reliable and efficient lighting solution for outdoor areas that require high-quality and controllable illumination. The use of LED technology ensures energy efficiency and precise control, while the durable construction and flexibility in installation make it a versatile choice for various applications.

    • New hollow design, seperated the power supply and heat source, better heat dissipation and longer lifespan.
    • Multiple beam angle. Low spill and asymmetrical optical distribution..
    • Heavy duty die cast aluminium, excellent corrosion-proof.
    • Suitable for coastal areas (with optional 304 stainless steel bracket).
    • Easy installation and adjustable brackets for flexible positioning.
    • Built-in surge protection.
    • L70 lifespan >102,000 hours.
    • Cost effective solution.
    • IP66, IK09.

    Light Distribution Curve:

    light distribution curve of Realshine Hubble Series Floog Light

    Supporting NEMA/Zhaga socket:

    you can install photocell sensor via NEMA or Zhaga socket, so that you can saves 20-50 energy and extends 2 or 4 times lifespan.

    photocell sensor can save 20-50% energy

    Details Advantages:

    • The HUBBLE boasts a toughened glass cover with real UV resistance and anti-corrosion properties, ensuring reliable performance even in the harshest environments. The cover acts as robust protection for the lens and is easy to clean.

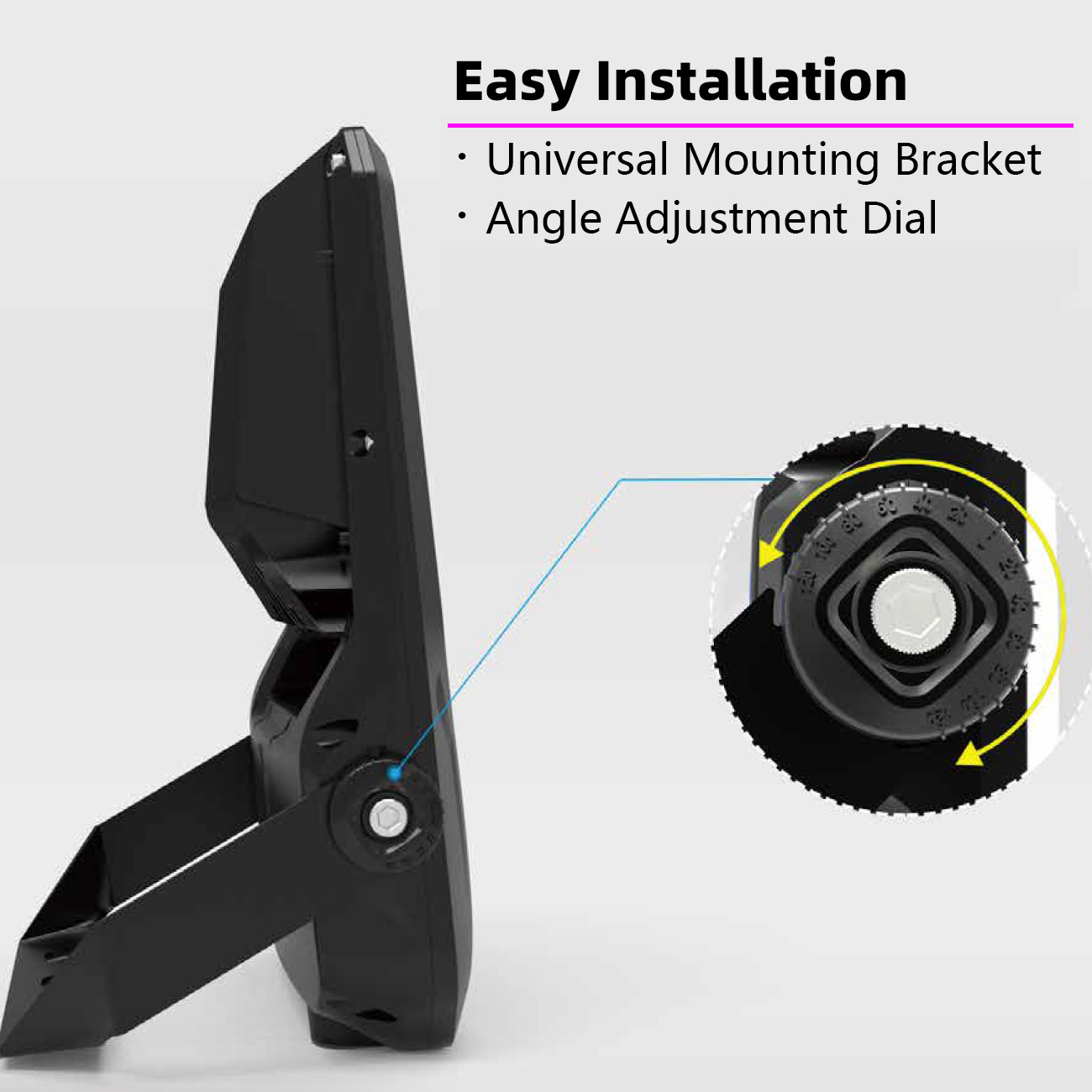

    • Installing the HUBBLE is a breeze with its universal mounting bracket and angle adjustment dial.

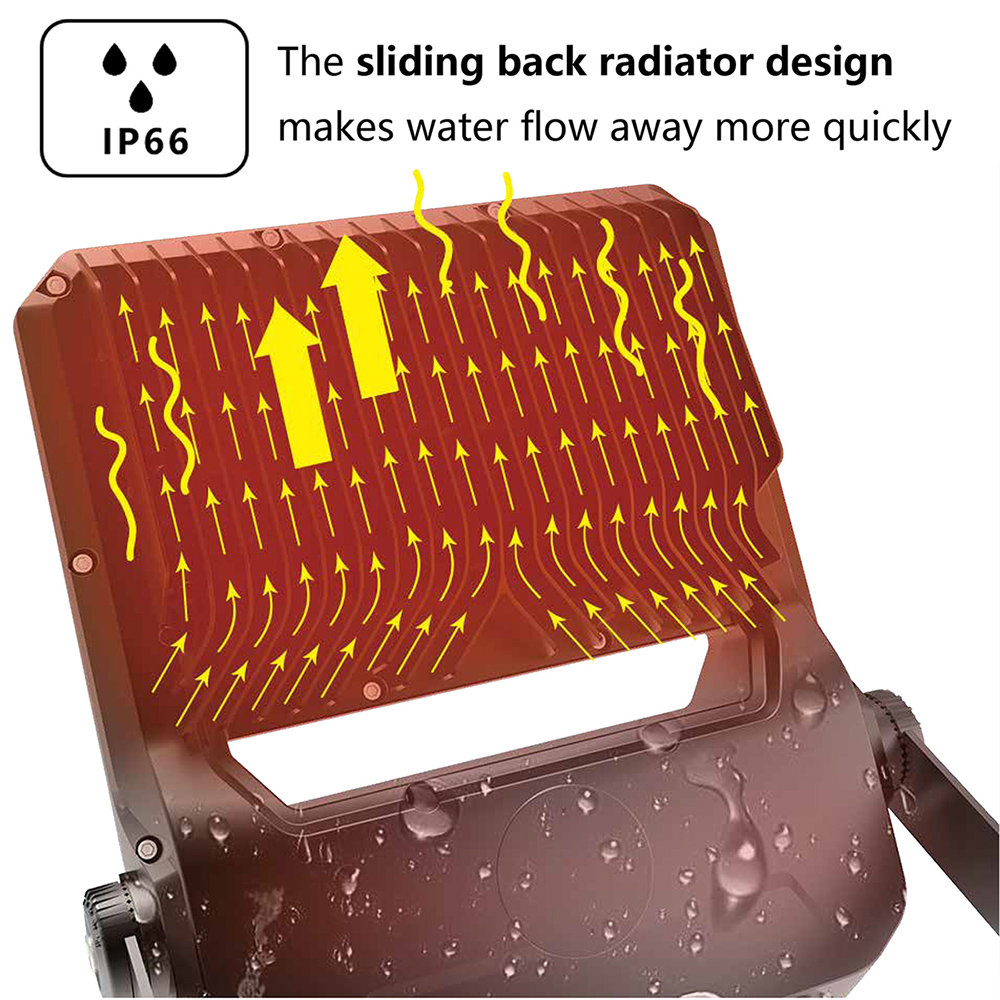

    • The hollow design helps dissipate the heat produced by the power supply, reducing the junction temperature of the LED light source.
    • With the added benefit of a photocell sensor, energy costs are lowered by 20-50% and the lifespan of the HUBBLE is extended by 2-4 times.

    details of Realshine Hubble Series Floog Light

    Suitable For:

    • Leisure Sports Fields
    • Container Yards and Ports
    • Aprons
    • Industrial Areas
    • Road Intersections
    • Facade Lighting
    • Billboards
    • Crossing Areas

    application of Realshine Hubble Series Floog Light
    Model Hubble-50 Hubble-75 Hubble-100 Hubble-150 Hubble-180 Hubble-200 Hubble-240 Hubble-280
    Power 50W 75W 100W 150W 180W 200W 240W 280W
    Dimension (mm) 337*252.6*55.2 462.6*320.3*84.6 487.6*385.4*93.4
    Net Weight 2.16kg 4.72kg 6.33kg

    Model All Series (50W-280W)
    Voltage AC100V-277V 50/60Hz
    Driver Inventronics/MeanWell
    PF 0.97
    Luminous Efficacy 140lm/W
    LED Source SMD 5050
    CCT 3000K-6500K
    SDCM <5 (<3 available)
    Beam Angle 30°/60°/90°/P45°
    Beam Angle(150W/240W/280W) 40°x130°, 60°x130° (additional)
    CRI Ra70 (80/90 available)
    THD ≤8%
    LifeTime@L70 >102,000h
    Dimmable Options 0-10V, DALI, Sensor, LoRa, Zhaga
    SPD 6kV
    Body Material Aluminum
    Lens Material Toughened Glass
    Colour Black (RAL9005)
    Operating Temp. -30~50
    Protection Rating IP66, IK09
    Certificate CE, SAA

    dimension of Realshine Hubble Series Floog Light
