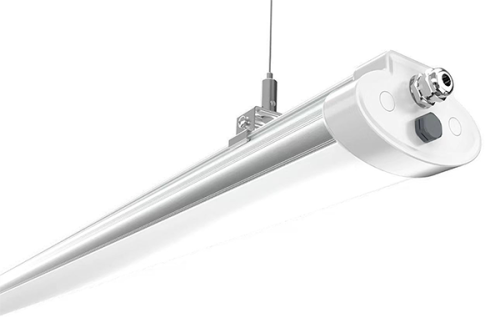

GoldLine Series Tri-Proof Light 20W-60W

LED tri-proof (waterproof, dustproof, and anti-corrosion) fixture
  • Input Voltage100V-240V
  • Lumen Efficacy130 lm/W
  • Power Factor>0.9
  • CCT2700K-7000K
  • CRI>80/90
  • IP Rating65
  • Warranty3-5 years
  • FlickeringNo Flickering
  • Driver BrandNon-isolated driver
  • LEDSMD 2835
  • MountingCeiling; Suspended
  • Beam Angle150°
  • More Less
    • Model:
    Description Specs

    Product Summary:
    The Goldline Series tri-proof lights are equipped with a high efficiency LED driver which includes a power factor correction circuit to provide a regulated high voltage DC bus. The driver has a high power factor of up to 0.9 over a 100-240VAC wide input range for maximal efficiency of the power grid. A low total harmonic distortion percent (THD < 15%) allows the driver to be immune from overheating and interference due to presence of excessive harmonics. Built-in over-voltage, over-current, short-circuit and overtemperature protections ensure the lifetime reliability of the luminaire.

    Features and Benefits:

    • Instant on to full brightness.
    • Wide input voltage: AC100-240V, 50-60Hz.
    • Eye friendly: CRI(Ra)≥80/90.
    • Wide beam angle 150°
    • CE/ROHS compliant.
    • Long working life: 50,000 hours.
    • 3/5 years warranty.

    Suitable For:

    garage, workshop, hallway, basement, warehouse, equipment room etc.

    Model GoldLine-0.6m-20W  GoldLine-1.2m-40W GoldLine-1.2m-60W
    Power  20W  40W 60W
    Dimension 600*80*46mm 1200*80*46mm 1200*80*46mm
    Input Voltage  100V-240VAC 50/60Hz
    Lumen Efficiency 130lm/W
    PF  >0.9
    CCT 2700-7000K
    CRI  Ra>80
    Beam Angle  150°
    Working Life  50000 hrs
    Working Temperature  -20 - +45
    IP Rating IP65
