FreeLine Series LED Linear Light 20W-68W
FreeLine Series LED Linear Light 20W-68W FreeLine Series LED Linear Light 20W-68W FreeLine Series LED Linear Light 20W-68W FreeLine Series LED Linear Light 20W-68W FreeLine Series LED Linear Light 20W-68W

FreeLine Series LED Linear Light 20W-68W

Connect freely and seamlessly as needed, Anti-glare
  • Input Voltage170V-265V
  • Lumen Efficacy100-120lm/W
  • Power Factor＞0.9
  • CCT3000K/4000K/6500K
  • CRI＞80
  • IP Rating20
  • Warranty5 years
  • FlickeringNon Flickering
  • SDCM＜3
  • Driver BrandNon-isolated driver
  • LED2835SMD
  • ConnectorsT Shape, L Shape, Cross Shape
  • MountingCeiling; Suspended
  • Beam Angle120
    • More Less
    • Length Watt:
      0.6m 20W
      0.9m 30W
      1.2m 40W
      1.5m 50W
      2.0m 68W
    Request Quote
    Description Specifications
    Description

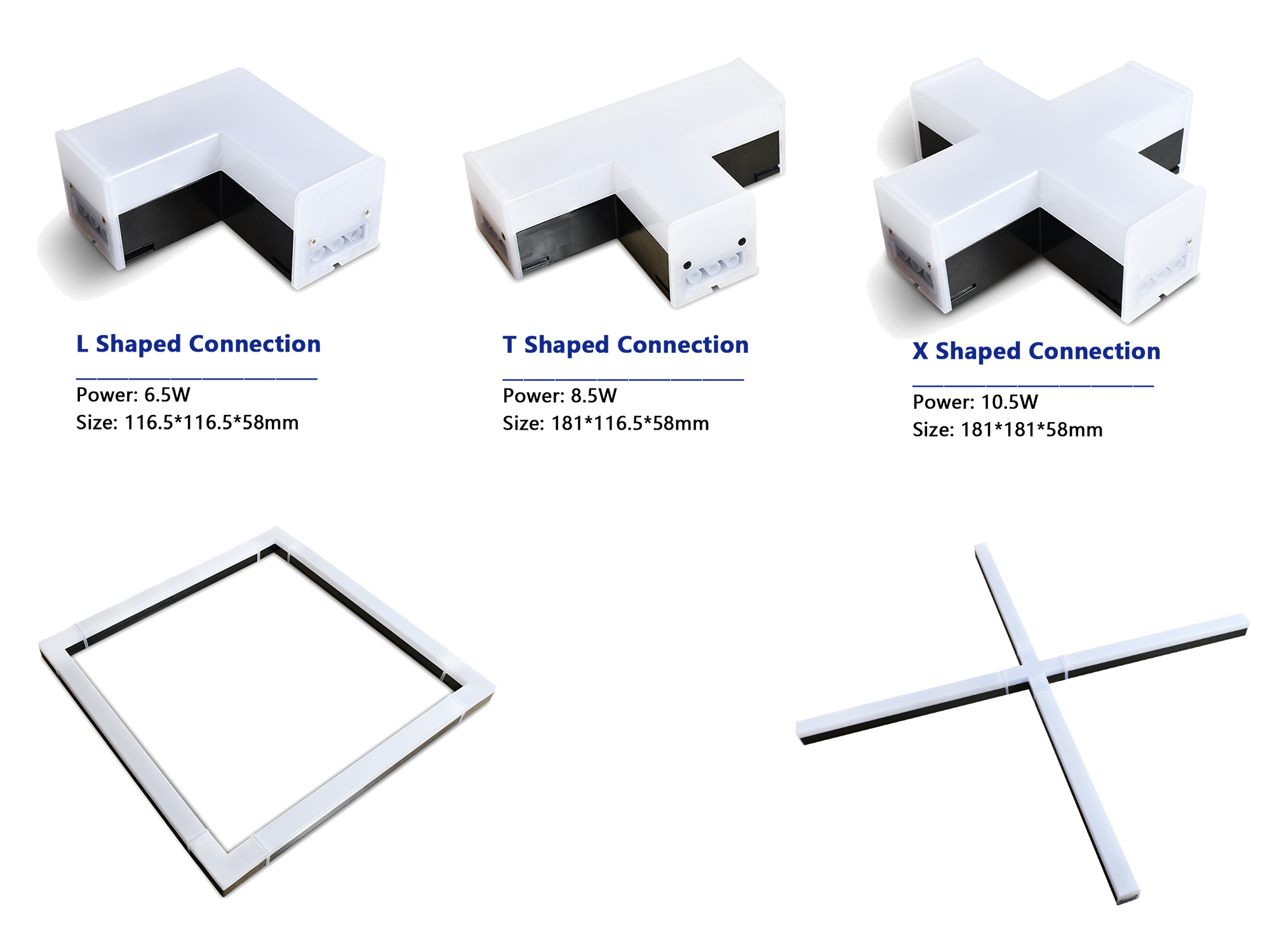

    This linear light is designed to seamlessly connect in any configuration you need, while being both sturdy and durable. It comes with L, T, and X-shaped connectors, and can support a maximum wattage of 1000 when connected in a straight line.
    This LED strip lighting fixture is designed to be linkable using the connection bracket accessory. You won't have to purchase or replace LED bulbs thanks to the integrated LEDs used in the fixture.
    Features：

    • Connect freely to make different styles.

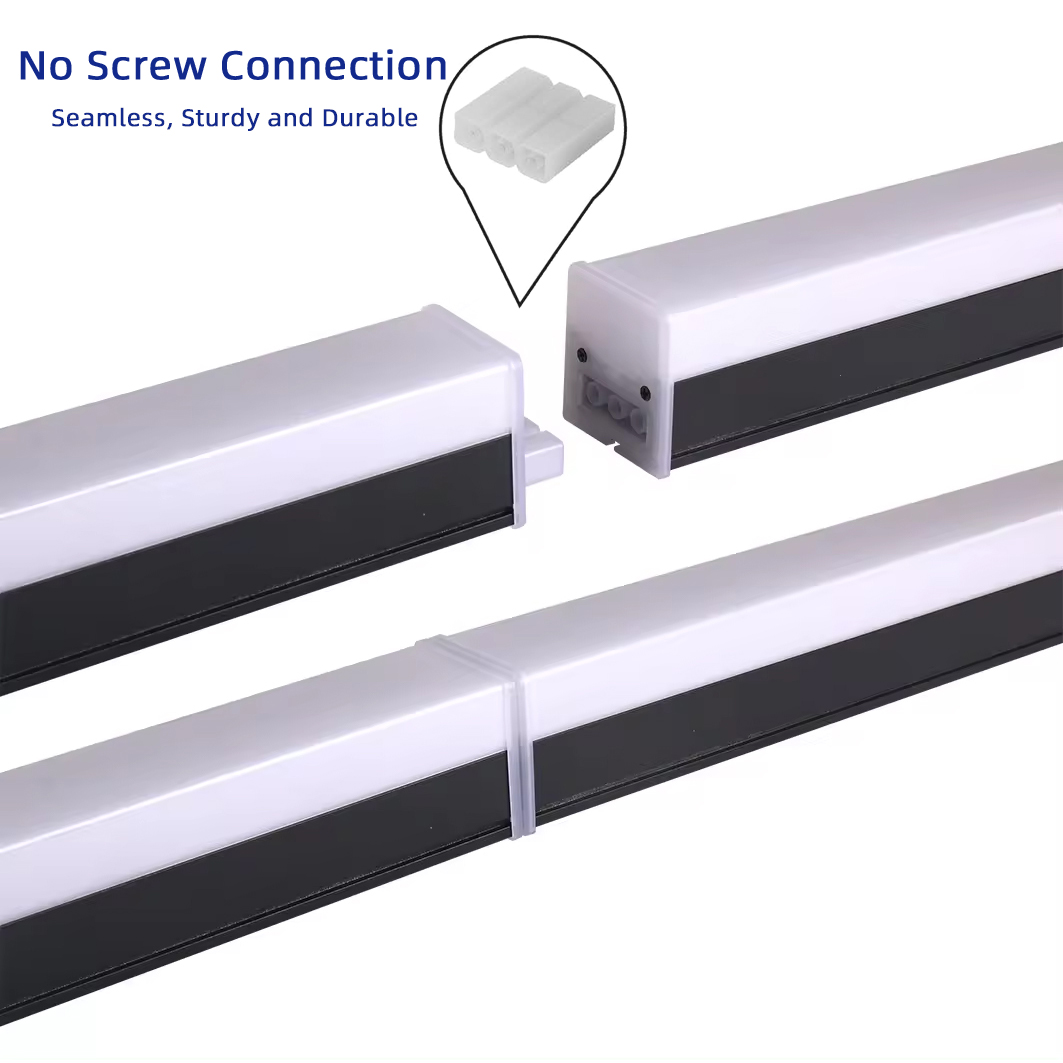

    • Seamless connection in a line.

    • Max1000Watt load can be connected in a line.

    • Anti-glare frosted lampshade.

    • Complete set of accessories.

    • High light transmittance.
    • Ensure the brightness while soft light is not dazzling.

      Suitable For:
      Office building，Metro, Hotel, Family and Home, Gallery, Clothing store, Art exhibition and Other Indoor or Commercial Lighting, etc.

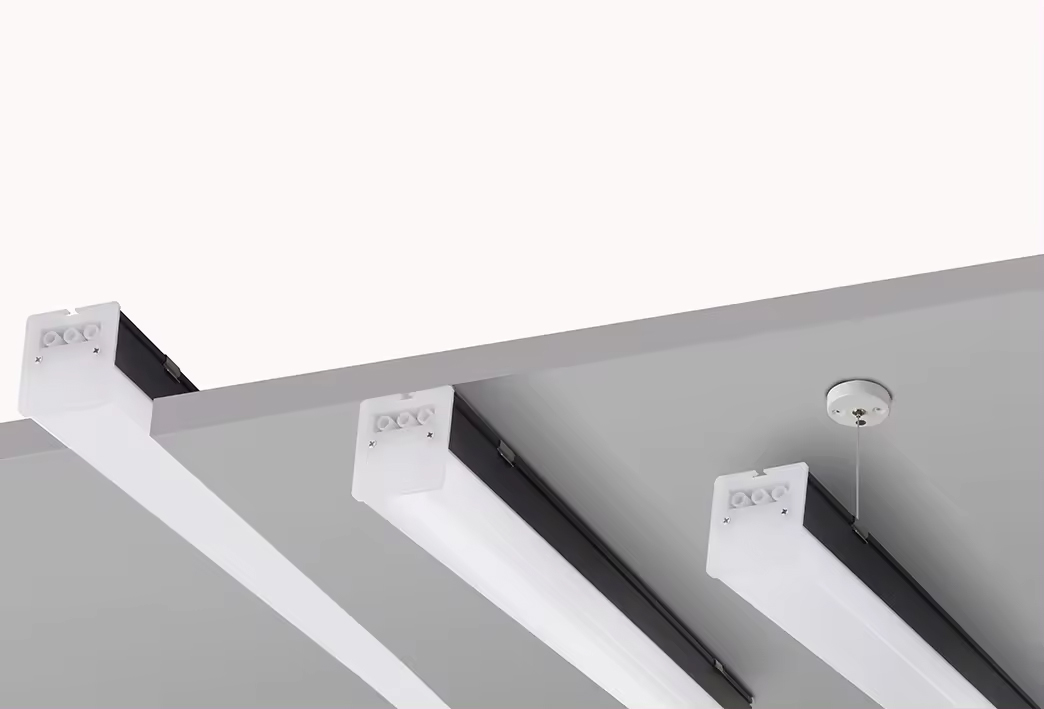

    Application senario of FreeLine series linear lightApplication senario of FreeLine series linear light
    Specifications
    Model All Series
    Input Voltage  170V-265VAC 50/60Hz
    PF  >0.9
    Luminous Efficacy 120lm/W
    CCT 3000-6500K
    CRI  Ra>80
    THD <15%
    Material Aluminum+PC
    IP Rating IP20

    Model FreeLine-0.6m-20W FreeLine-0.9m-30W FreeLine-1.2m-40W FreeLine-1.5m-50W FreeLine-2m-68W
    Power  20W 30W 40W 50W 60W
    Dimension(LxWxH) 600*50*55mm 900*50*55mm 1200*50*55mm 1500*50*55mm 2000*50*55mm
