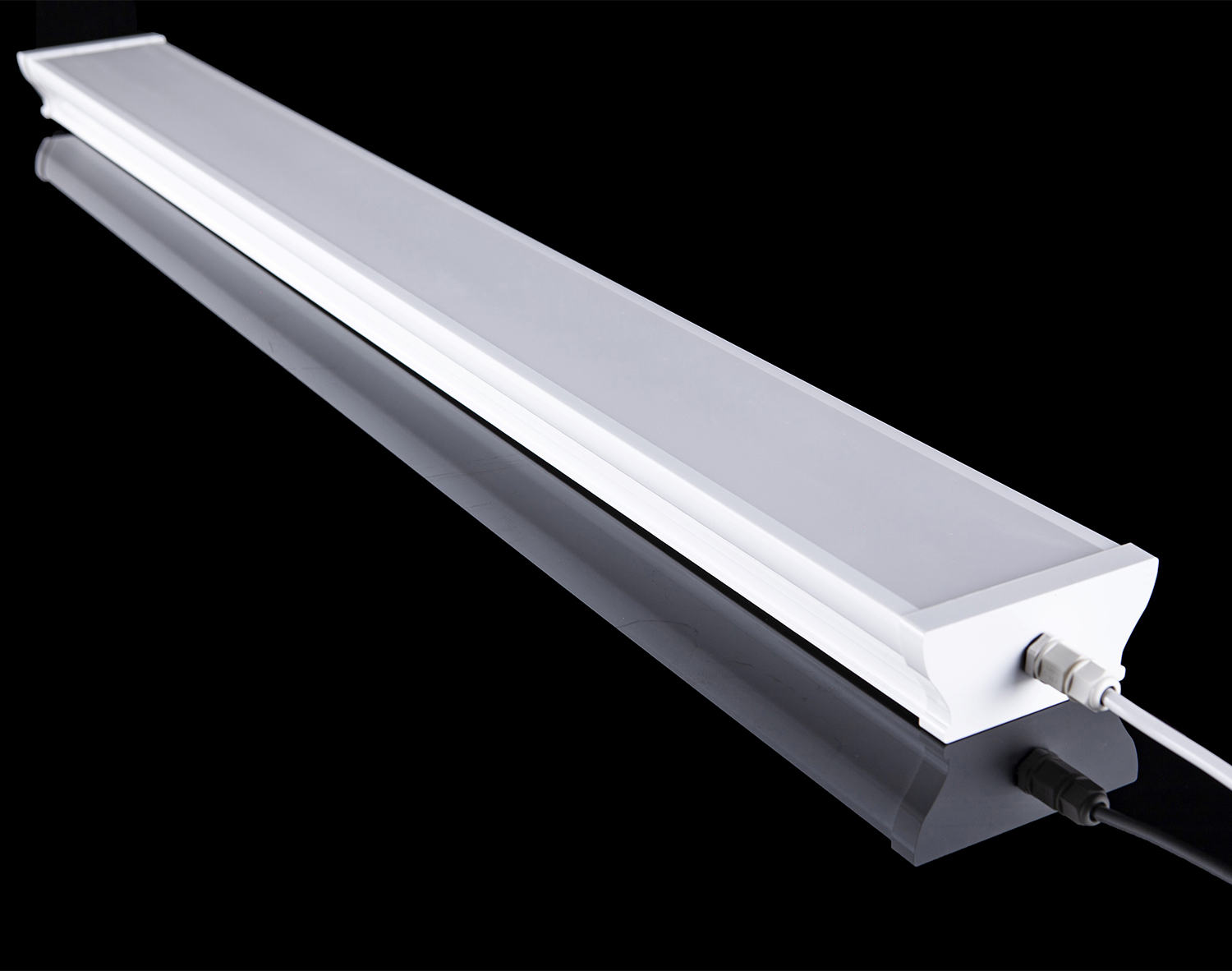

FlatLine Series LED Tri-Proof Light 30W-80W

LED tri-proof (waterproof, dustproof, and anti-corrosion) fixture, Linkable with up to 8 pcs. Instant on to full brightness.
  • Input Voltage220-240V, 50Hz
  • Lumen Efficacy100-130 lm/W
  • Power Factor>0.9
  • CCT2700K-7000K
  • CRIRa>80
  • IP Rating65
  • Warranty5 years
  • FlickeringNo Flickering
  • Driver BrandOsram/Philips
  • LEDSMD 2835
  • MountingCeiling; Suspended
  • Beam Angle120°
  • More Less
    • Model:
    Description Specifications

    Product Summary:

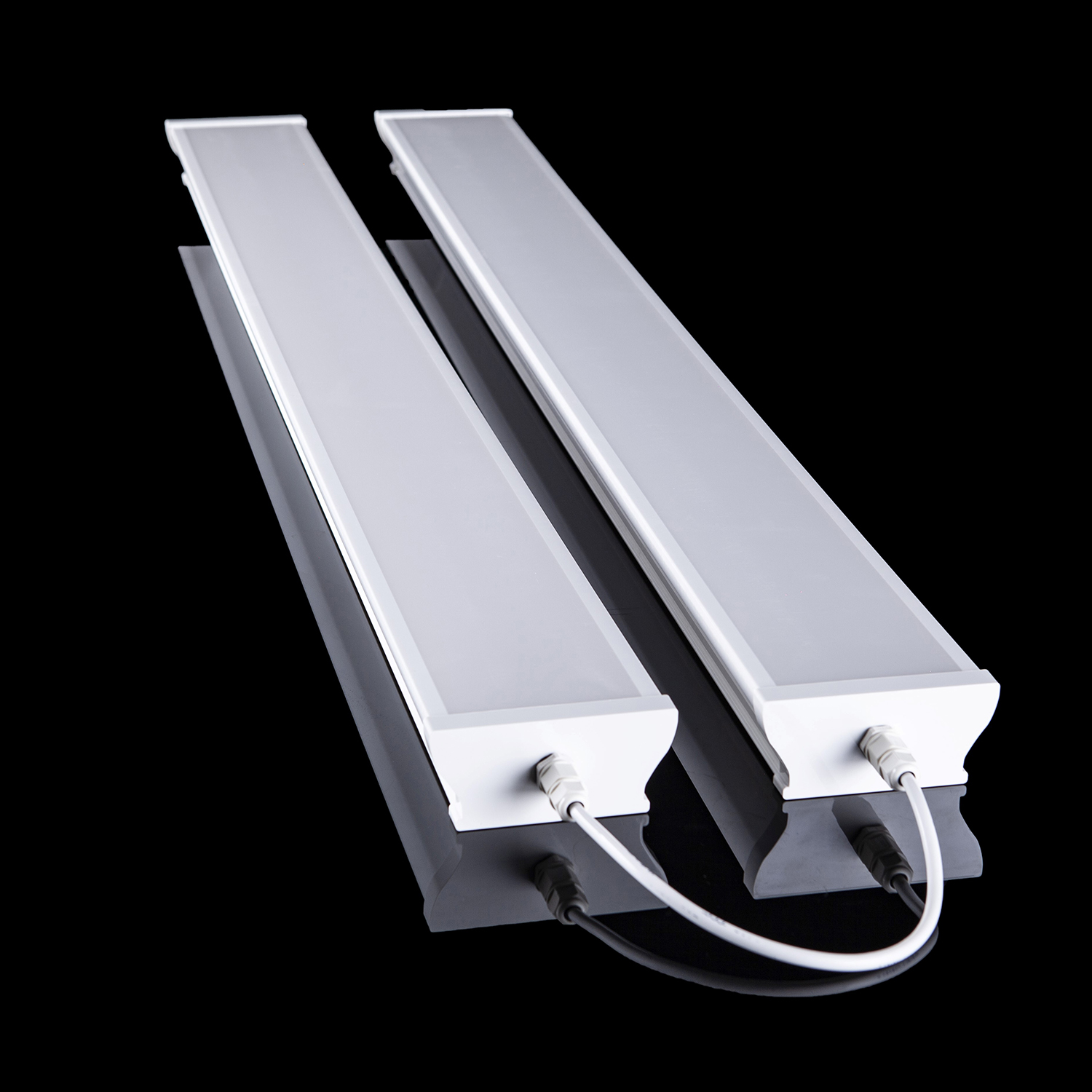

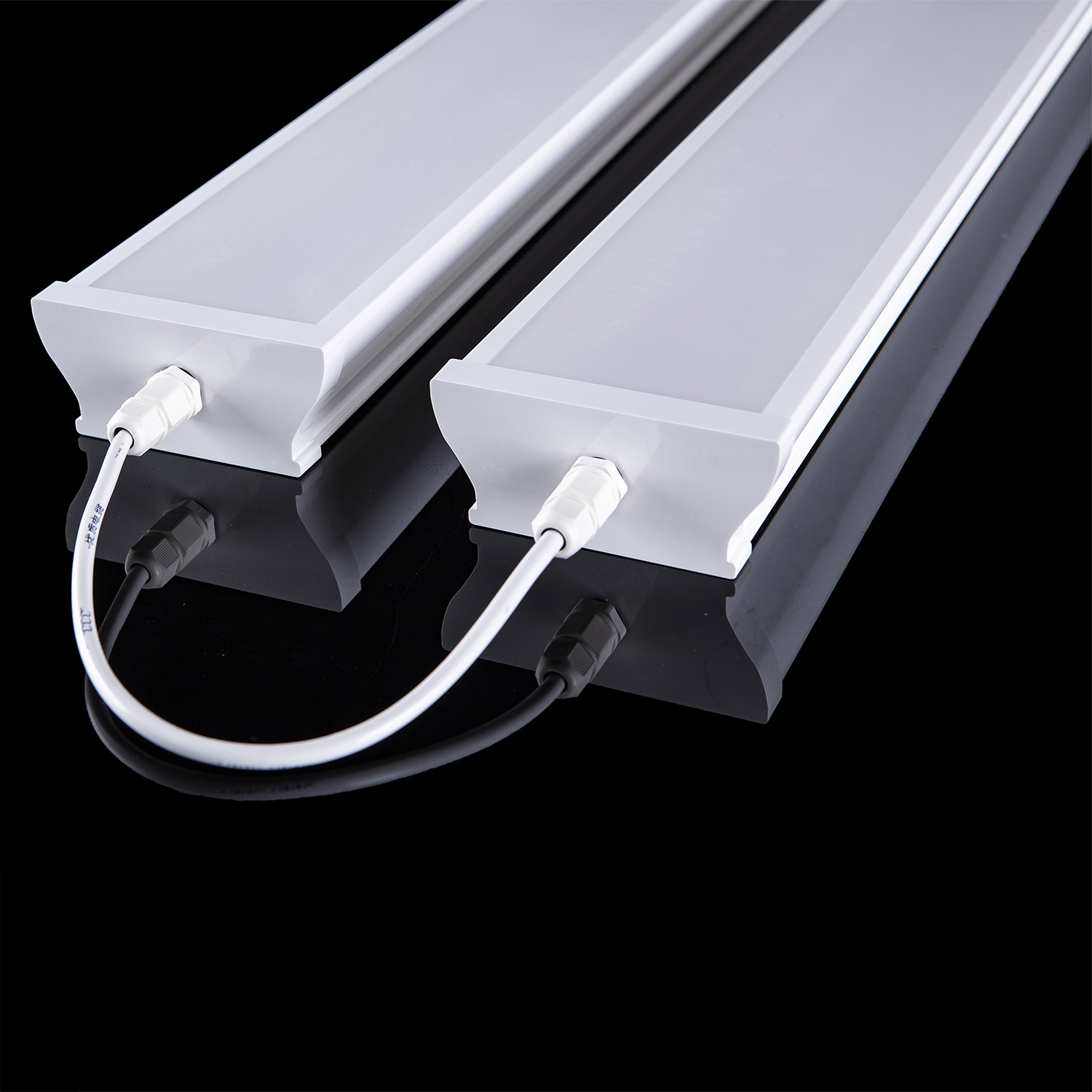

    The Flatline Series LED tri-proof light adopts flat streamlined design. The driver and lumen efficacy can be customized according to actual needs to meet various application scenarios. Meanwhile the linear lamp can be linkable with up to 8/10 pcs.(For 30-50W, up to 10 pcs linkable; For 60-80W,
    up to 8 pcs linkable;)

    Features and Benefits:

    • Instant on to full brightness.
    • Linkable with up to 8/10 pcs
    • Eye friendly: CRI(Ra)≥80.
    • Wide beam angle 120°
    • CE/ROHS compliant.
    • Long working life: 50,000 hours.

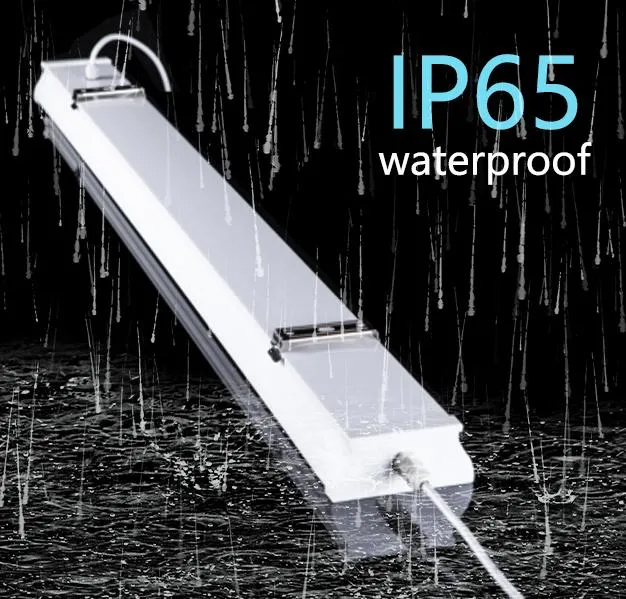

    • IP65
    • 5 years warranty.

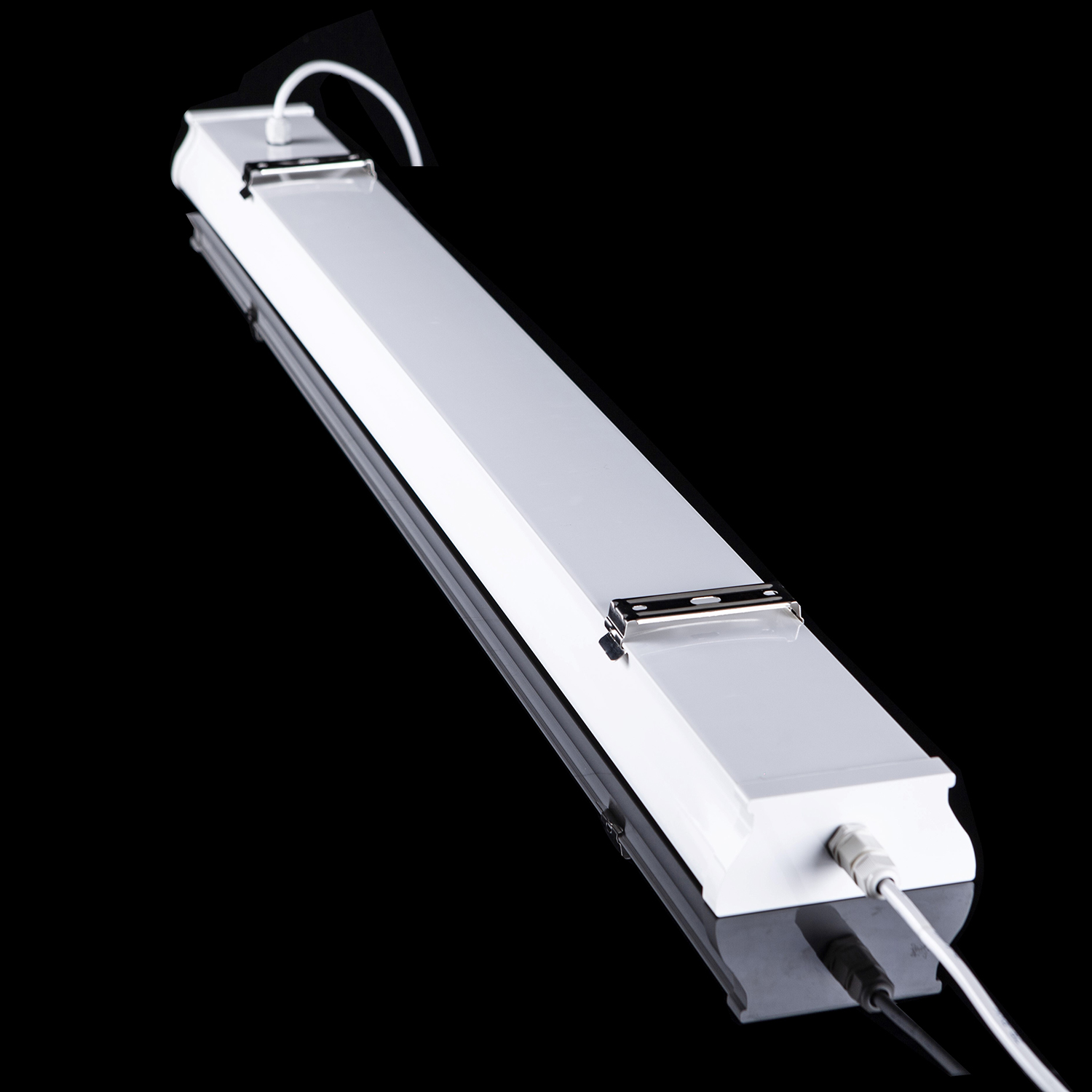

    One-hand Installation:
    one-hand installation of Flatline

    Emergency Function with Batteries:
    The Emergency time would be 3 hours and the emergency power is 5W.
    emergency function with batteries for Flatline

    Suitable For:

    garage, workshop, hallway, basement, warehouse, equipment room etc.
    application senario of FlatLine series light

    Model All Series(30-80W)
    Input Voltage  220-240V, 50Hz
    Driver Osram/Philips
    Lumen Efficacy 100~130lm/W
    PF  >0.9
    CCT 2700-7000K
    CRI  Ra>80
    Beam Angle 120°
    Operation Temp. -20~45
    Life Span 50000h
    Concatenation Max. 8pcs
    IP Rating IP65

    Model FlatLine-30W FlatLine-40W FlatLine-50W FlatLine-60W FlatLine-70W FlatLine-80W
    Power  30W 40W 50W 60W 70W 80W
    Dimension 580*120 *54mm 880*120 *54mm 1180*120 *54mm 1480*120 *54mm
