FIESTA Series LED Flood Light 10W-400W

Multiple beam angle, prominent performance,high price competitivity.
  • Wattage10-400W
  • Input Voltage100V-277V
  • Lumen Efficacy130lm/W;140lm/W;150lm/W
  • MaterialADC12 aluminum; Tempered Glass cover
  • Protection RatingIP66;IK08
  • Color Temperature3000K/4000K/5000K/5700K/6000K/6500K
  • C.R.I70;80
  • Driver BrandMeanwell,Inventronics,Sosen
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI
  • Power Factor0.95
  • Light Distribution7°/15°/ 30 °/ 60°/90°/120°/T2M/T3M/T4M
  • Ambient Temperature-40℃-50℃
  • Life Time100,000 hours
  • Warranty5 years
  • More Less
    • Model:
    Description Specs

    Product Summary:
    The Realshine’s FIESTA LED flood light is a unique solution for sports court and recreational park lighting that demands high quality horizontal and vertical illuminance while maintaining precise cut-off optical control. Available in a variety of wattage options from 10Watt to 400Watt, FIESTA is one of Realshine’s most popular lighting solutions that are driven by the latest advances in LED technology. Combining state-of-the-art LED light engines, thermal management design, optical technology and electrical systems, the FIESTA Series LED luminaires yield the optimal balance of desired light levels and economic benefits.

    FIESTA LED flood lights begin with the highest quality componentry in the industry. The Lumileds LEDs produce unmatched quality of light with brilliant color rendering capability designed specifically for visually distinctive illumination. The constant current MeanWell LED driver works seamlessly with a breadth of LED module. The driver is fully featured with high efficiency of 91%, excellent PF 0.95 and THD less than 15% over wide variations in line voltage, and advanced protection features ensuring the highest reliability. Top-tier LED and driver technology paired with Realshine’s engineering depth of thermal and optical systems deliver one of the industry's most robust lighting systems for high-end outdoor flood/area lighting. FIESTA LED flood lights feature an excellent system luminous efficacy of up to 150 lumens per watt, which translates to significant energy savings of up to 75% compared to conventional HID luminaires.

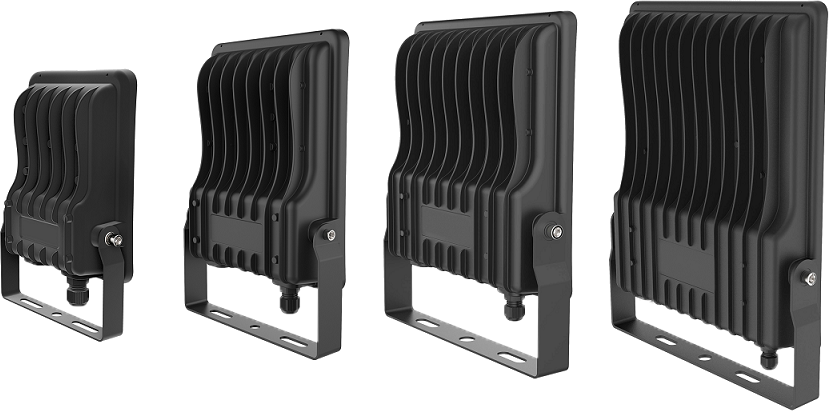

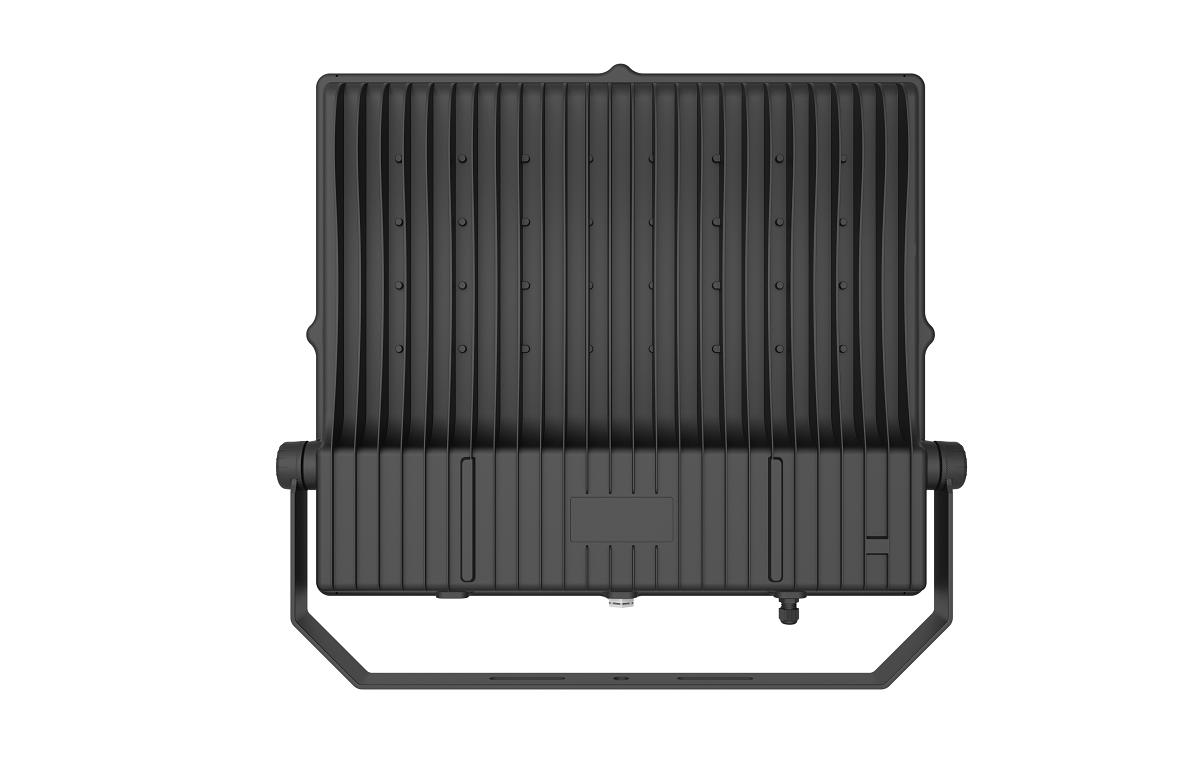

    The rugged, die-cast housing of FIESTA flood includes an integrated heat sink which is aerodynamically shaped to encourage an increased velocity of airflow. The driver compartment is thermally isolated to reduce the negative effect of thermal energy transfer from LED junctions.

    The luminaire's IP66 rated all-weather construction is designed for exceptional durability and long term reliability. A purposefully engineered vent breather prevents temperature cycling from building up internal vapor or pressure.


    • Multiple beam angle: 7°,15°, 30°, 60°, 90°, 120°, T2M, T3M, T4M, etc.

    • Robust die-casting aluminum housing, excellent corrosion-proof.

    • Elegant appearance.

    • Good heat dissipation, long lifespan.

    • Tempered glass cover.

    • Span life L70>100,000 hours.

    • 5 years warranty.

    Mounting Mode:


    Model All Series (10W-400W)
    Voltage AC100V-277V 50/60Hz
    PF 0.95
    Luminous Efficacy 130lm/W; 140lm/W; 150lm/W
    LED Type LUMILEDS 3030
    CCT 2800-6500K
    Beam Angle 7°/15°/30°/60°/90°/120°/T2M/T3M
    CRI Ra70/80
    THD 15%
    Material Die-casting ADC12
    Operating Temp. -40~50
    IP Rating IP 66
    Certificate CE, CB, SAA

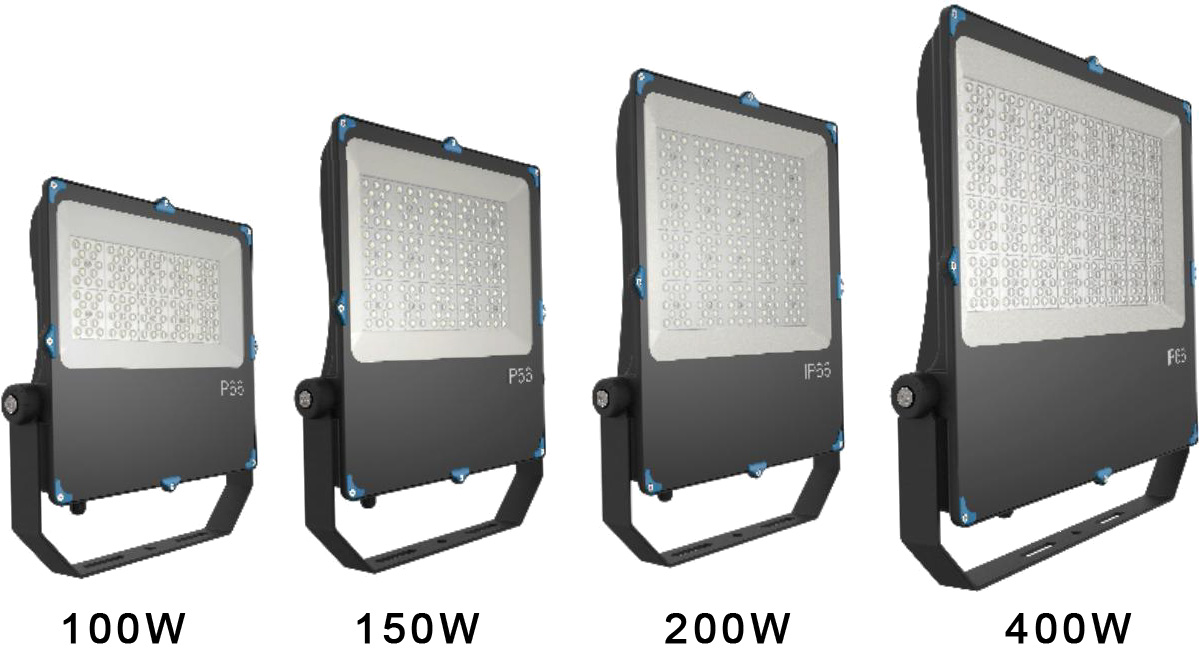

    Model Fiesta-10 Fiesta-20 Fiesta-30 Fiesta-50 Fiesta-100 Fiesta-150 Fiesta-200 Fiesta-400
    Power 10W 20W 30W 50W 100W 150W 200W 400W
    Dimension (mm) 188*123*47 242*169*51 283*220*52 283*220*52 369*278*52 394*392*57 445*392*57 524*545*65
    Net Weight 0.5kg 0.98kg 1.5kg 2.6kg 4.0kg 4.7kg 5.7kg 8.5kg
