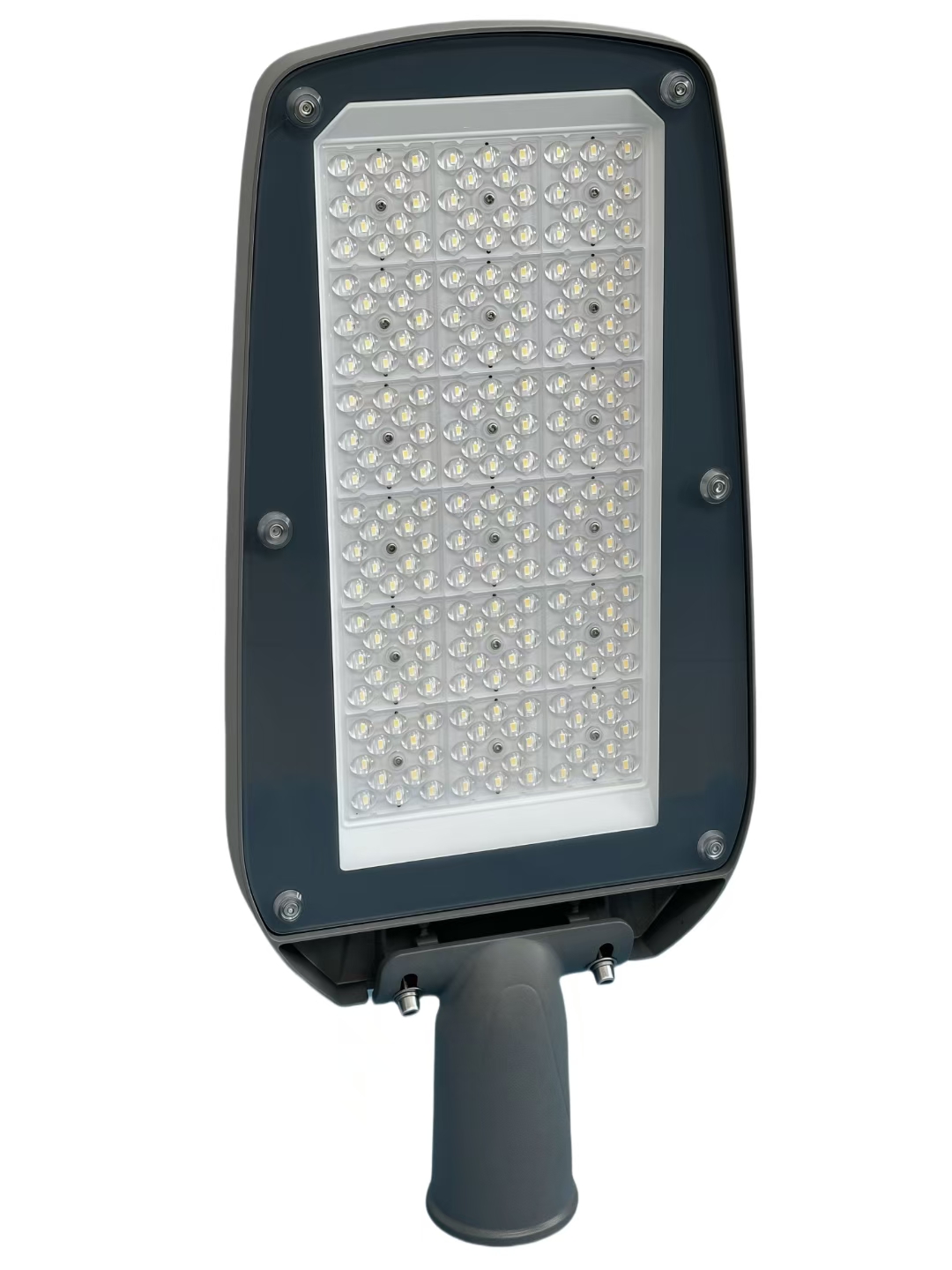

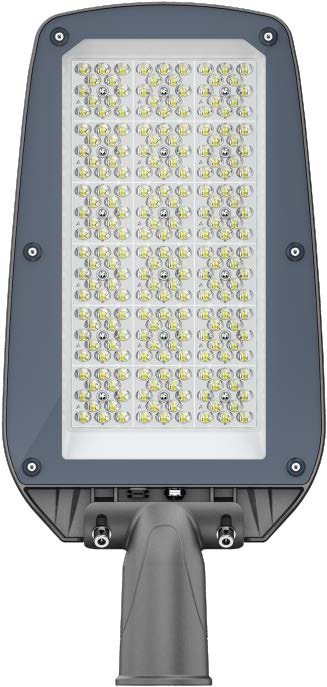

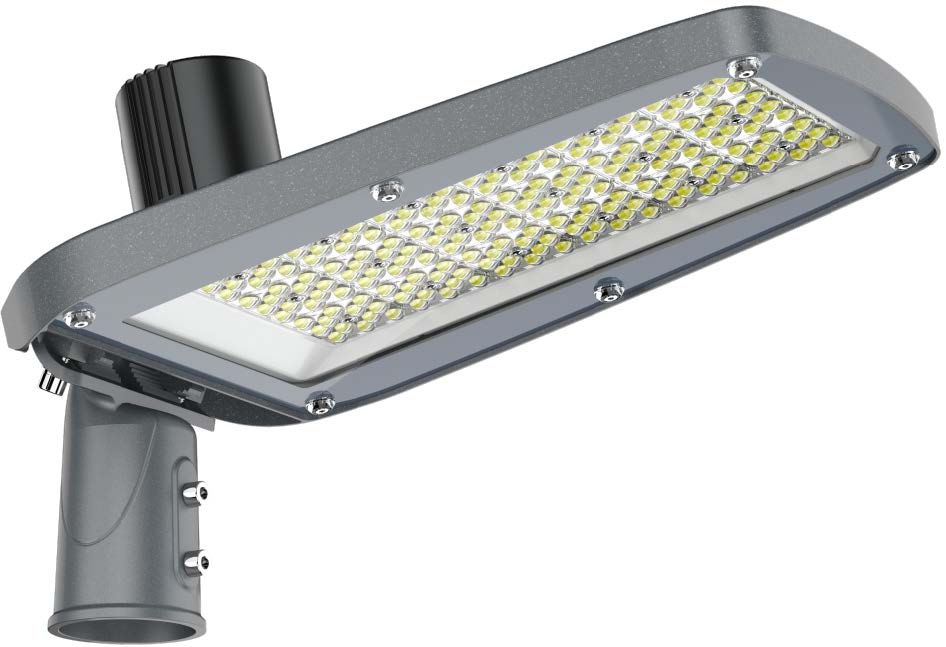

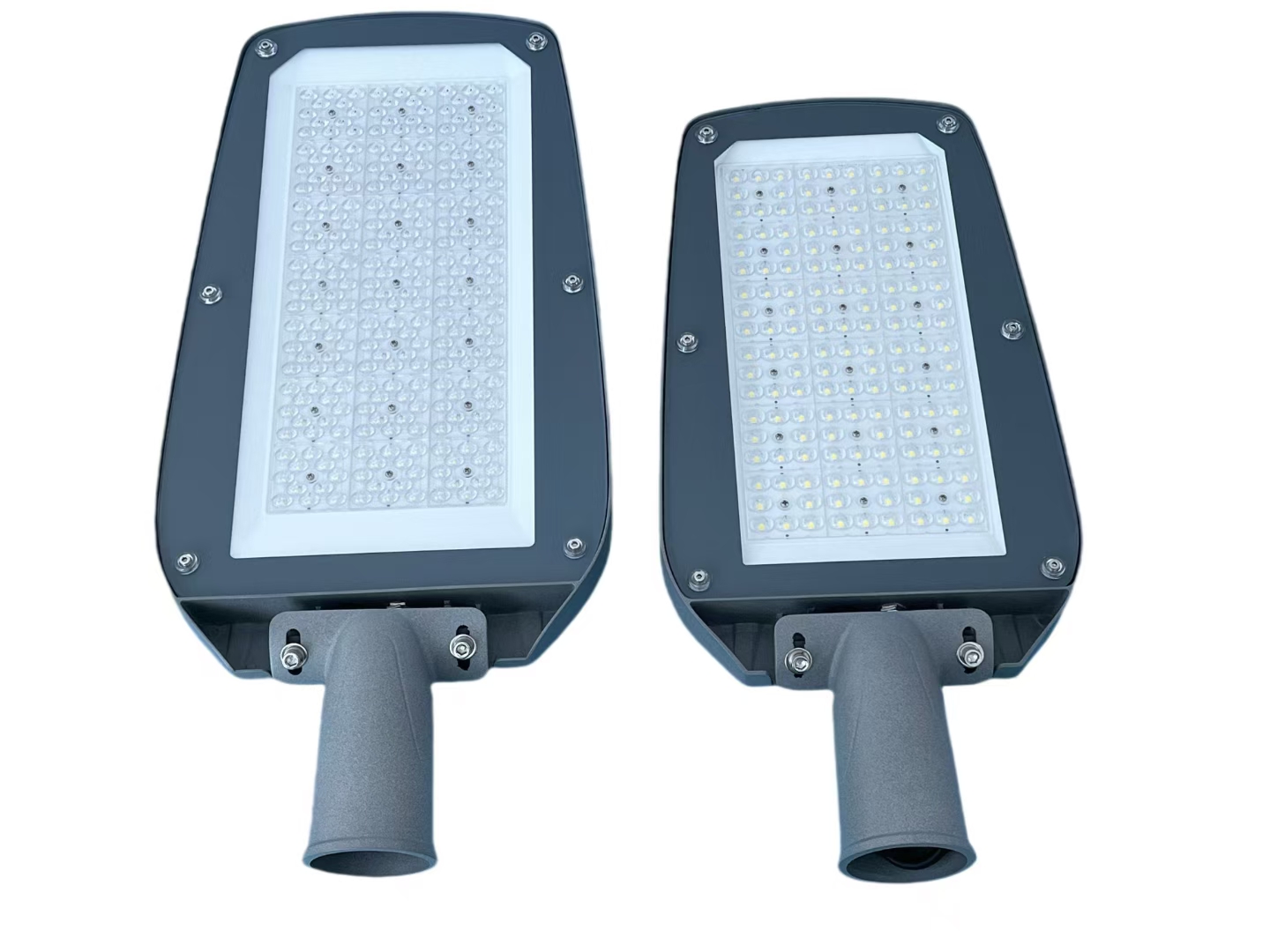

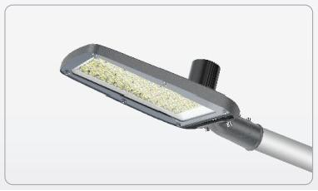

Product Summary:
The Blade Street Light Leaflet adopts die-casting aluminum plus tempered glass cover, internal heat dissipation thermal paths. External knob plug-in structure, simple installation, easy operation, maintenance only takes 10 seconds. This products is widely used in roads, communities, streets, courtyards,parks,squares and new rural constructin etc.
Electrical Features:
1.The power supplyis equipped with NFC near-field wireless communication technology, which does notrequire traditional wiring programming,does notrequire power on, and can change internal parameters at will by touching,making programming simpler and more eficient.
2.The power supply integratesa multi-point detectionlight controlcircuitto distinguish between natural light and artificiallight,realize theintegration of power supplyand light controller,and remove the original externallight controllerconfiguration scheme.

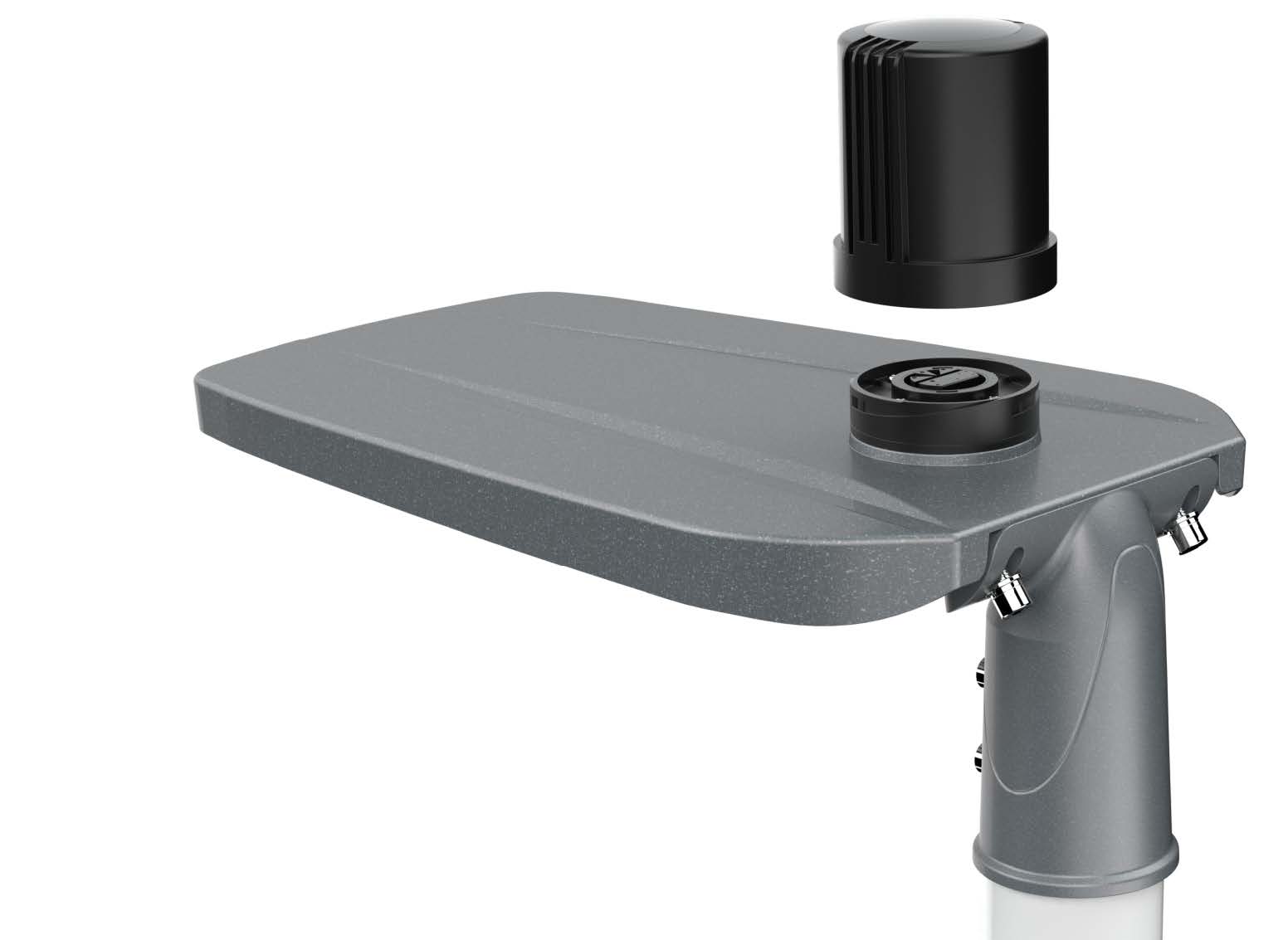

3.The power supply adopts an external knob plug-in structure, whichis simple to install and easy to operate,and only takes 10 seconds to maintain and after-sales.
4.The powersupply efficiencyis as high as 94.596,which can realize timed dimming/switching,and flexibly set the brightness oflamps according to different regions, seasons and needs to reduce energy consumption.The external application ofthe power supplyrealizes convection between the power supply and the air,reduces the core temperature inside the power supply,and effectively extends the life ofthelamp.
5.Surge protecton:6KV/10KV with overvoltage, short circuit,overtemperature, overcurrent protection,etc.

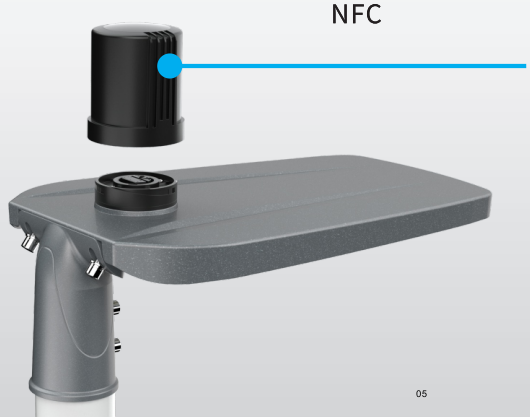

NFC Function:
1.No driver compartment required, maintenance is more convenient
2.Intelligentlight control detection
3.NFC offline programming
4.Zigbee mobile phone control
5.Powertime control
6.Bluetooth
7.DALI-2
8.Buckle design,fast maintenance
9.Vibration protection:5G
10:Surge protection:6/10KV

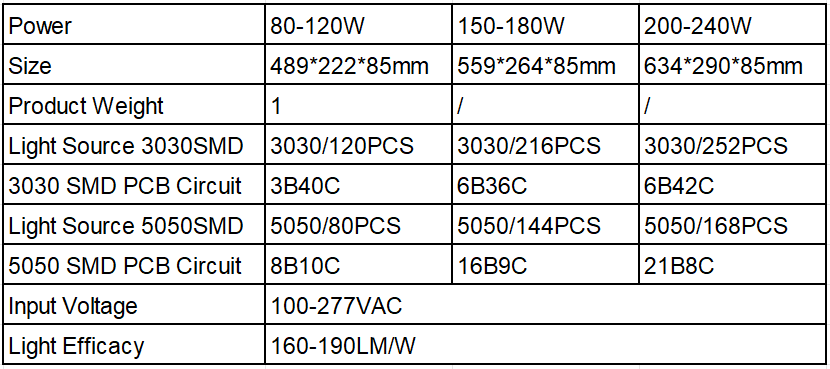

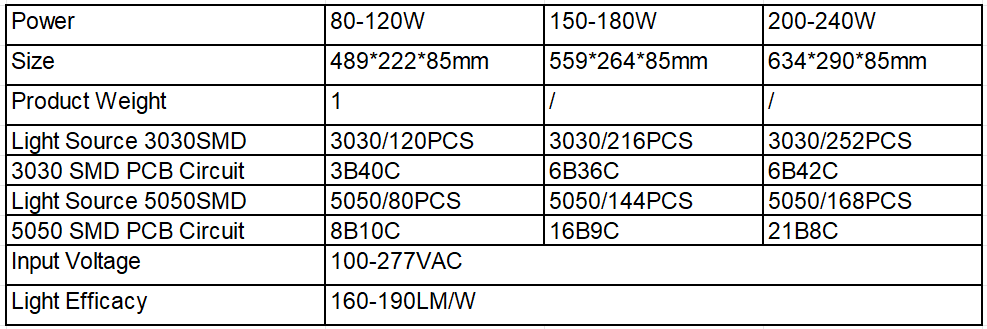

Main Parameters:

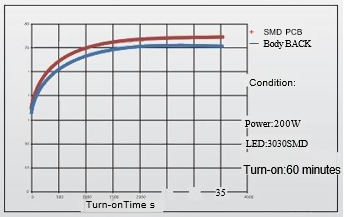

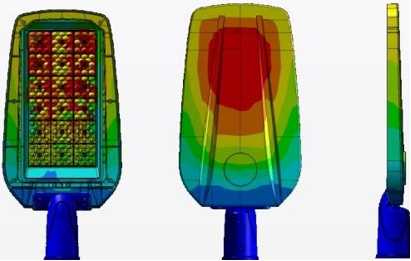

Thermal management:
Dimension Drawing:

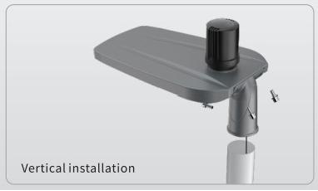

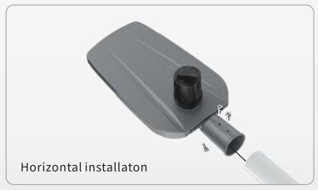

Installation angle can be adjusted:
Application senarios:
This series light is suitable for main road, high way, flyover, city street, overpass, sidewalk, square, school, residential district, industrial area, park etc.
