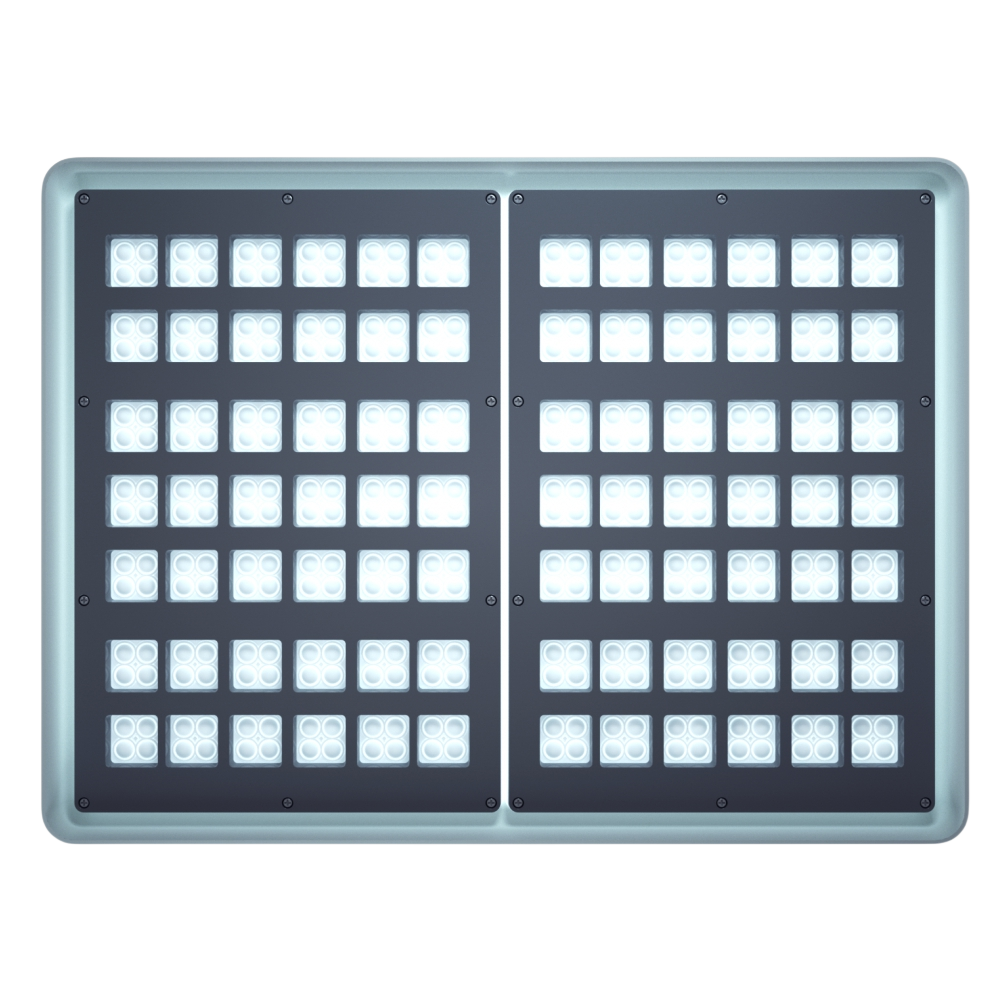

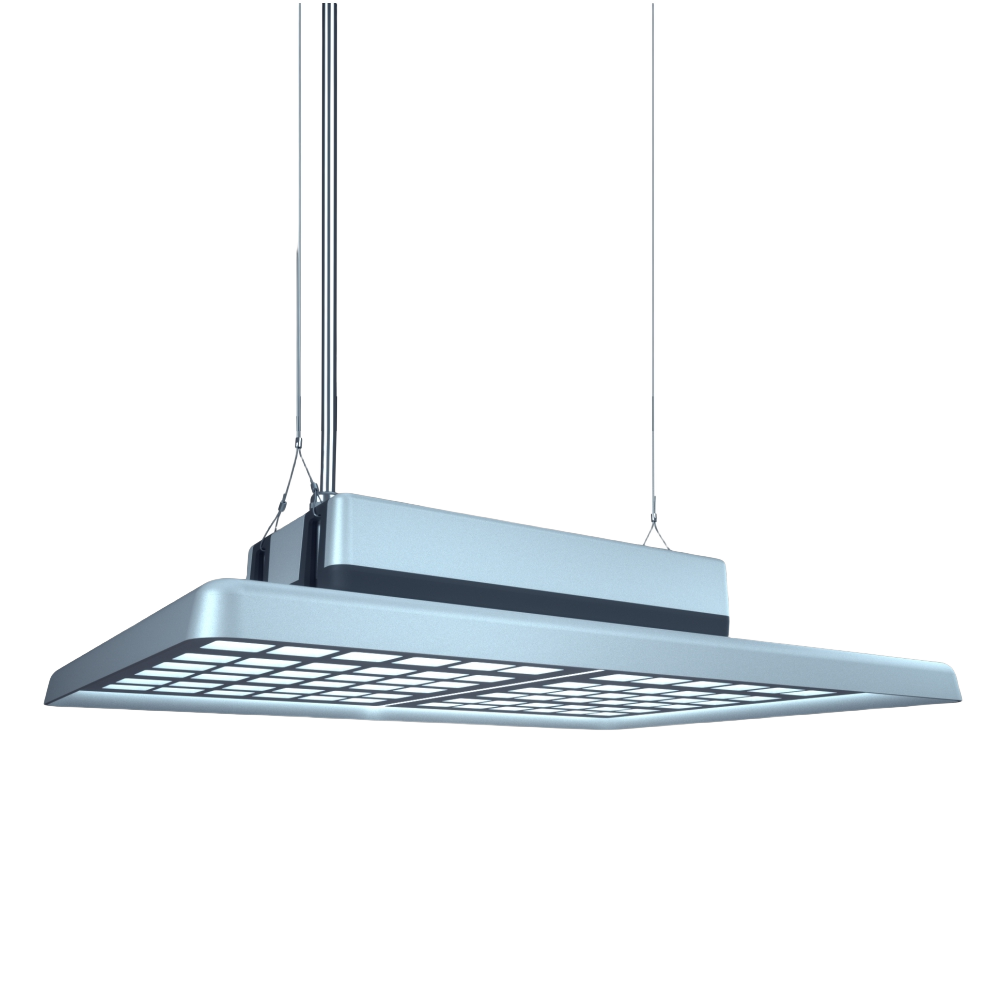

Acebeam Series Led Highbay for Sports

Anti-glaring light is required more and more for applications where people doesn't feel comfortable with the glaring light, especially when the light were not very high. ACEBEAM is the ideal solution for visual protection.
  • Wattage100W~240W
  • Input Voltage120V-277V
  • Lumen Efficacy150lm/W; 170lm/W;190lm/W;210lm/W
  • MaterialADC12 aluminum; PC lens
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A

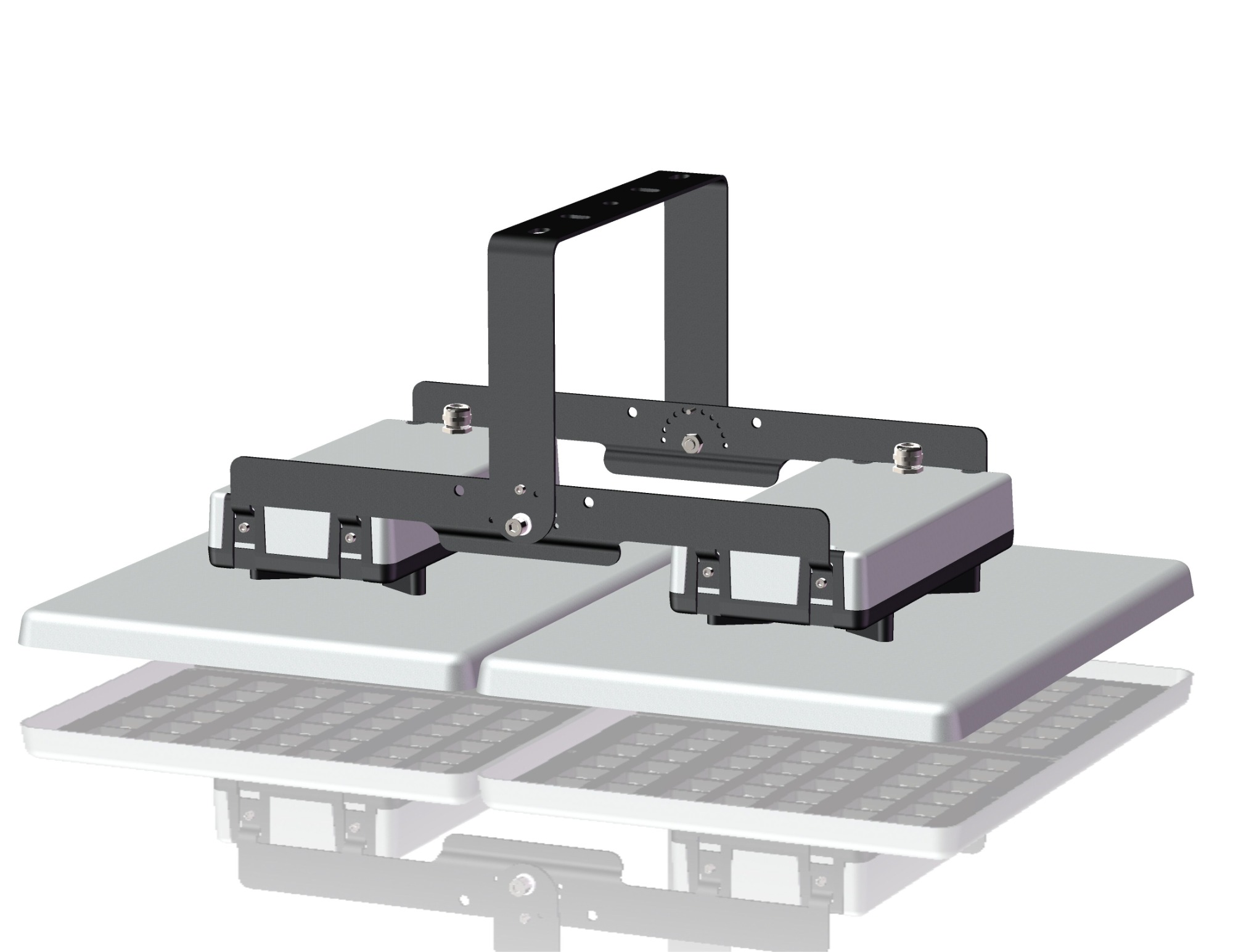

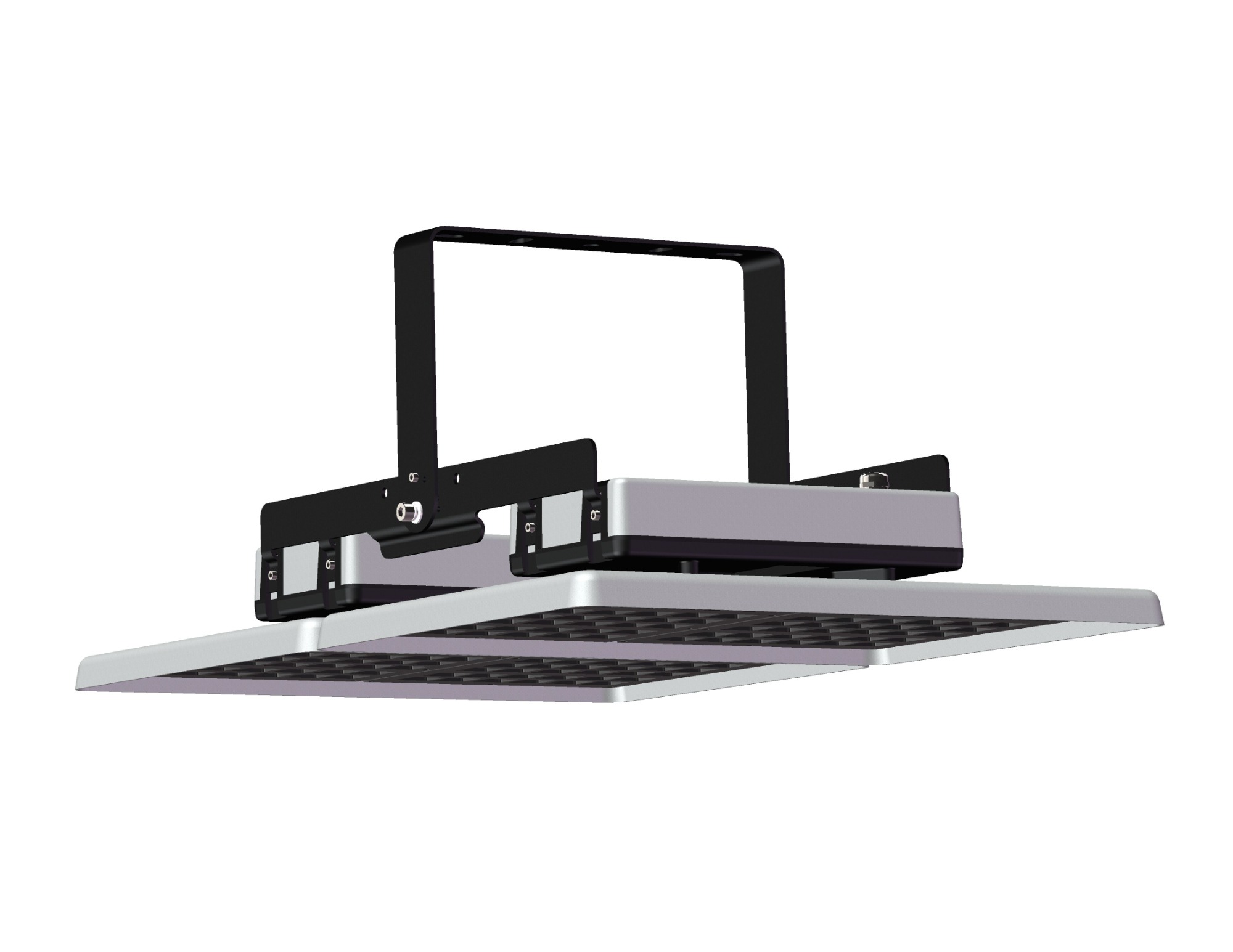

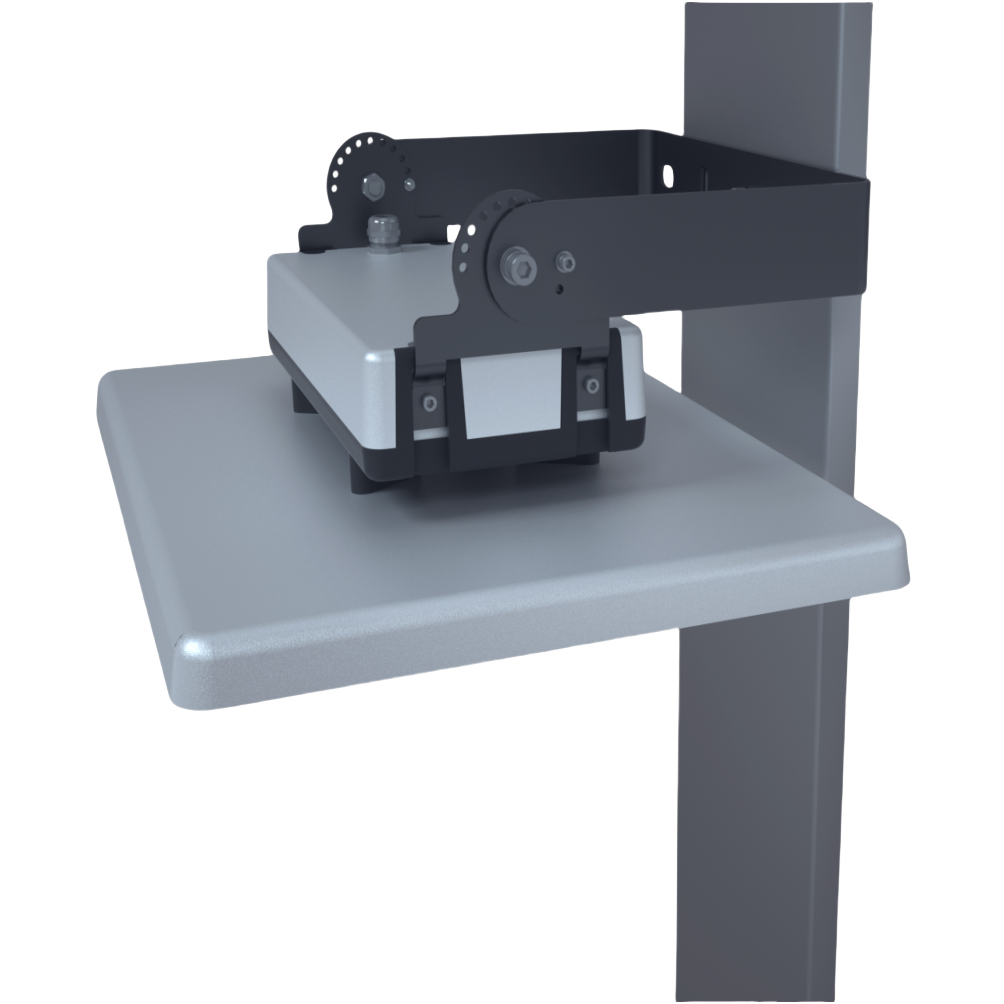

  • InstallationBracket; Chain
  • Color Temperature3000K/4000K/5000K/5700K/6000K/6500K
  • C.R.I70;80
  • Driver BrandSosen;Philips;Lifud
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI2
  • Power Factor0.95
  • SPD6KV
  • SocketNEMA; Zhaga
  • Light Distribution60° /90°/120°
  • Ambient Temperature-40℃-50℃
  • Life Time50,000 hours
  • Warranty5 years
  • More Less
    • Model:
      100W
      150W
      200W
      240W
    Description Specifications
    Description

    Product Summary:

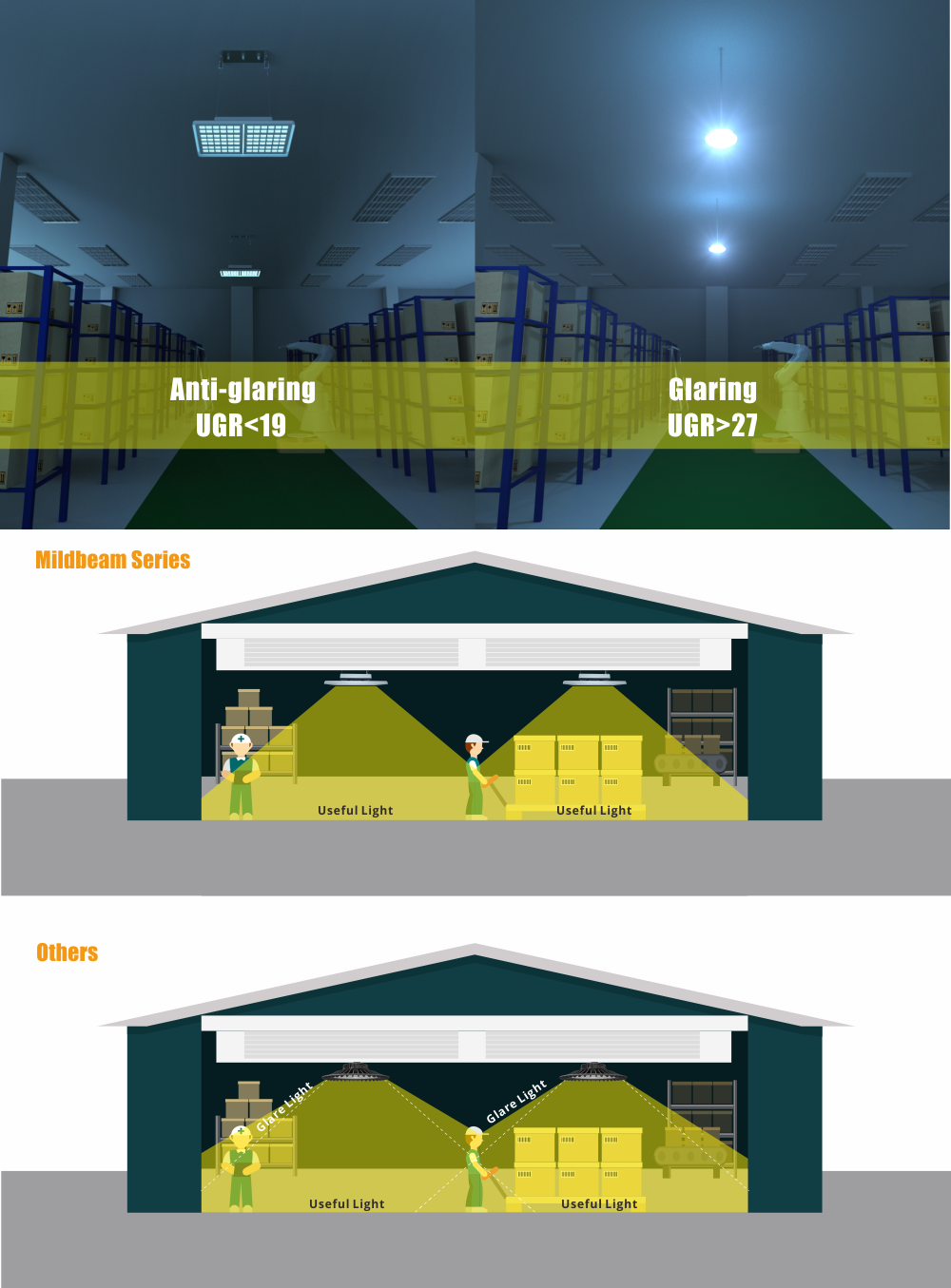

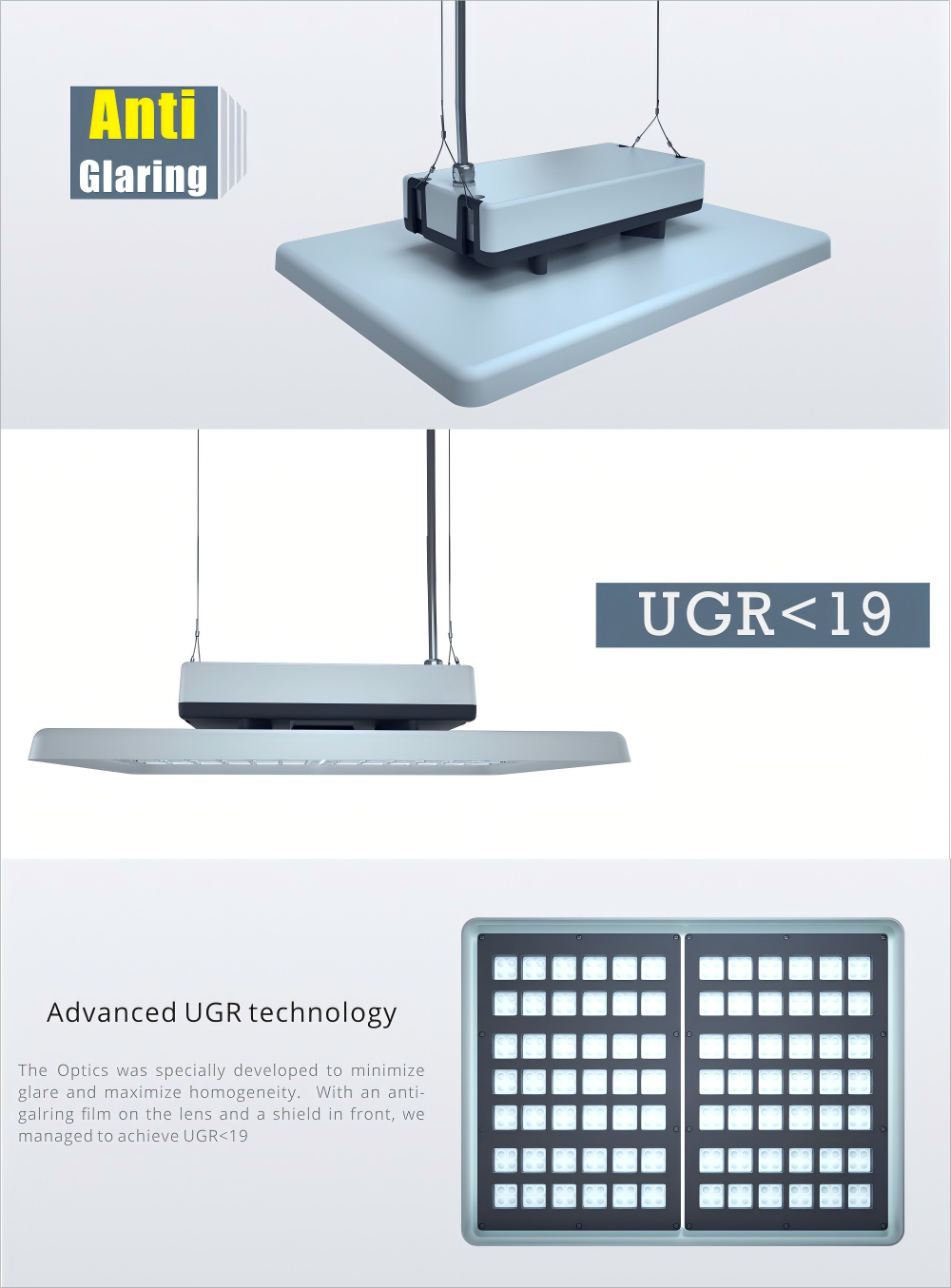

    Anti-glaring light is required more and more for applications where people doesn’t feel comfortable with the glaring light, especially when the light were not very high. ACEBEAM is the ideal solution for visual protection. This increases the performance of staff and the quality of their work. The Optics was specially developed to minimize glare and maximize homogeneity. With an anti galring film on the lens and a shield in front, we managed to achieve UGR<21.

    Features
      ✔   2 options:UGR19 130LM/W,UGR21 160LM/W

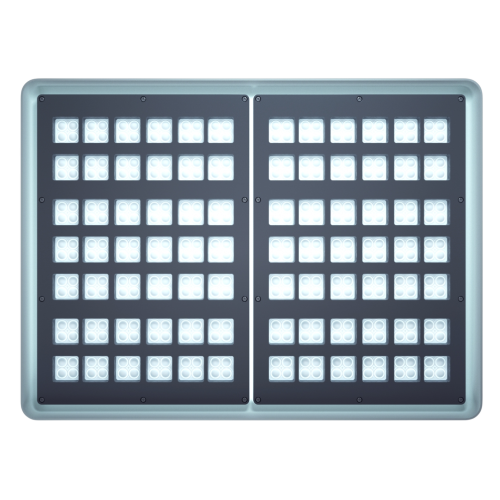

      ✔  Advanced UGR technology,angti-glare lens+ anti-glare grill
      ✔  IP65 IK10
      ✔  Europe Design Patent,unique square shape, helping customers get rid of the low price competition of normal UFO highbay
      ✔  Europe stock with duty-paid price


    Specifications
    Product Specifications
    Watt(W) 60W,100W,150W,200W,300W
    Voltage(V) 100~277V
    Effi.(lm/w) 130LM/W
    Lumen(lm) 7800LM,13000LM,19500LM,26000LM,39000LM
    CRI 80
    Power factor > 0.95
    IP IP65
    Dimension (mm) 362*257*120,415*310*120,487*362*120,720*365*130
    IK IK10
