Karina Ⅱ Series LED High Bay Light 100W-240W

Power and CCT adjustable via a DIP switch. High luminous efficacy up to 170lm/W.
  • Wattage100W~240W
  • Input Voltage120V-240V
  • Lumen Efficacy150lm/W; 170lm/W;
  • MaterialADC12 aluminum; PC lens; Glass cover
  • Protection RatingIP65;IK09
  • Independent Driver CompartmentYes
  • Tool-free MaintenanceN/A

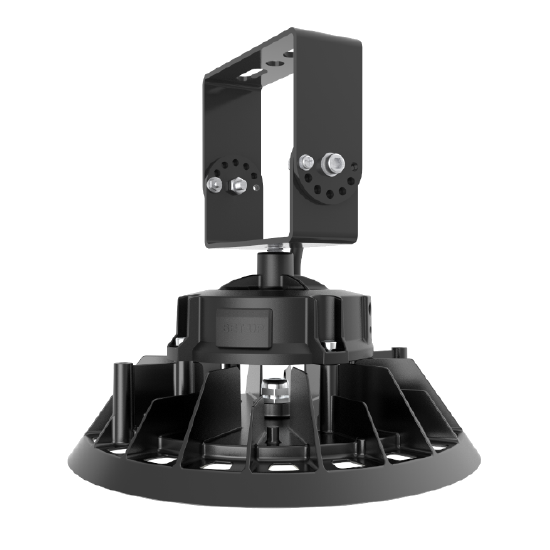

  • InstallationBracket; Chain
  • Color Temperature3000K/4000K/5000K/5700K/6500K
  • C.R.I70;80
  • Total Homonic Distortion<15%
  • Dimming1-10V; DALI
  • Power Factor0.9
  • SPD6KV
  • SocketNEMA; Zhaga
  • Light Distribution60° /90°/120°
  • Ambient Temperature-30℃~45℃
  • Life Time100,000 hours
  • Warranty5 years
  • More Less
    Description Specs

    Product Summary:
    The Karina Ⅱ Series LED High Bay Light adopts compact fin design for better

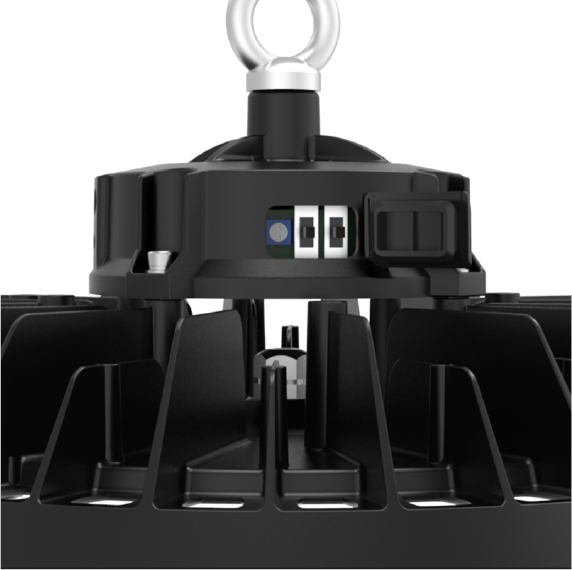

    heat dissipation. Independent driver design offers power and CCT adjustable via a DIP switch.

    • Power and CCT adjustable via a DIP switch.
    • Maximize energy savings with efficacies of up to 170lm/W.
    • Light-on-demand feature with optional motion sensor.
    • Abundant accessories.
    • 5 years warranty.

      Light Distribution Curve:
      The beam angle is 60°/90°/120°.

      Abundant Accessories:

    Motion Sensor:

    Typical Application Senario:

    • Warehouses
    • Car Parks
    • Industrial and Commercial Halls

    Model All series (100W~240W)
    Input Voltage AC120~240V 50/60Hz
    PF 0.9
    Luminous Efficacy 170lm/W; 150lm/W;
    CCT 3000K/4000K/5000K/5700K/6500K
    CRI Ra70 (80 optional)
    THD 20%
    Beam angle 60°/90°/120°
    Surge Protection 6kV-Line-Line, 6kV-Line-Earth
    Shell Material Housing: die-casting aluminum
    Switching Cycles 100,000 times
    Lifespan L70B10>100,000h; L80B10>50,000h;
    Operating Temp. -30~45
    Protection Rating IP65,IK09
    Certificate CE

    Model Karina-100 Karina-150 Karina-200 Karina-240
    Power 100W 150W 200W 240W
    Dimensions (not including bracket) Ø230×152 mm Ø273×161 mm Ø308×166 mm Ø349×166 mm
    Weight 1.4kg 2.0kg 2.6kg 3.0kg
